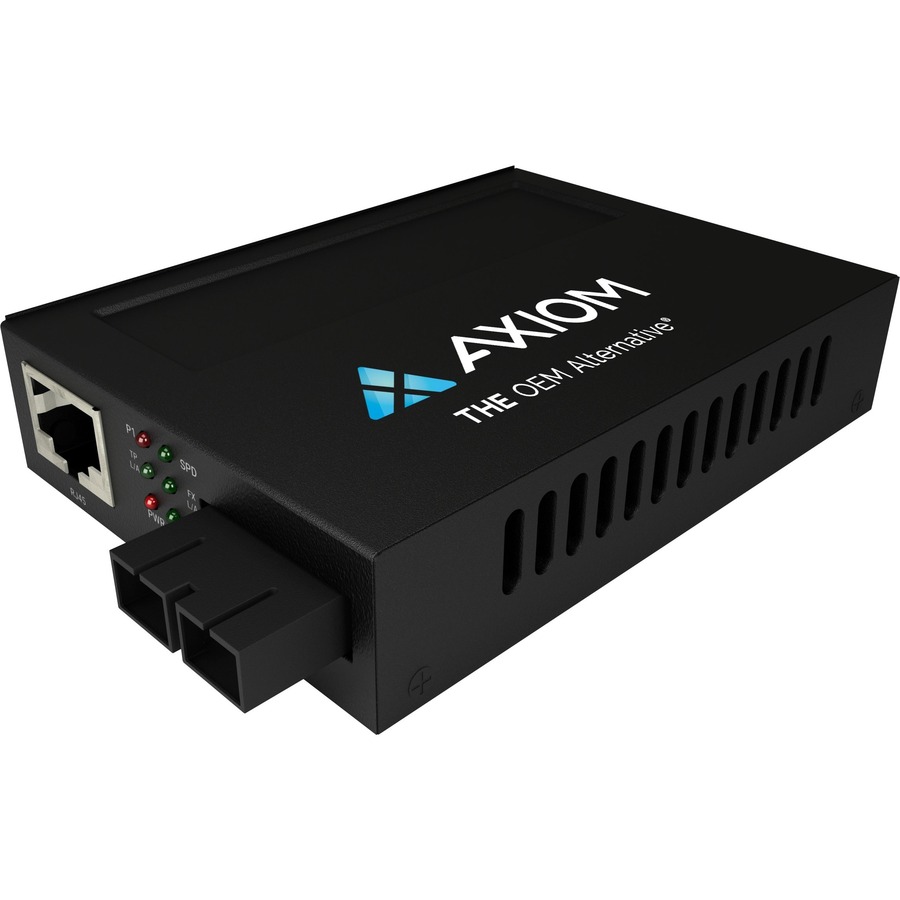

Axiom 1Gbs POE RJ45 to 1000BASE-LX Fiber Media Converter - SMF, SC, 10km, 1310nm
Manufacturer: Axiom Memory Solutions
Mfr. Part: MCP32-F1-S3S10-AX
Network (RJ-45) - 1x PoE (RJ-45) Ports - 1 x SC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-LX, 10/100/1000Base-T - 10 km - AC/DC
About This Product
Overview
Features
The Axiom POE (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3af powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3af PoE PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- With 1000Base-LX technology get up to 1000Mbps data transfer rate over optical fiber cable
Quick Specifications
- Product Series
- POE (PSE)
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of PoE (RJ-45) Ports
- 1
- PoE Port Type
- PSE
- Number of SC Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
