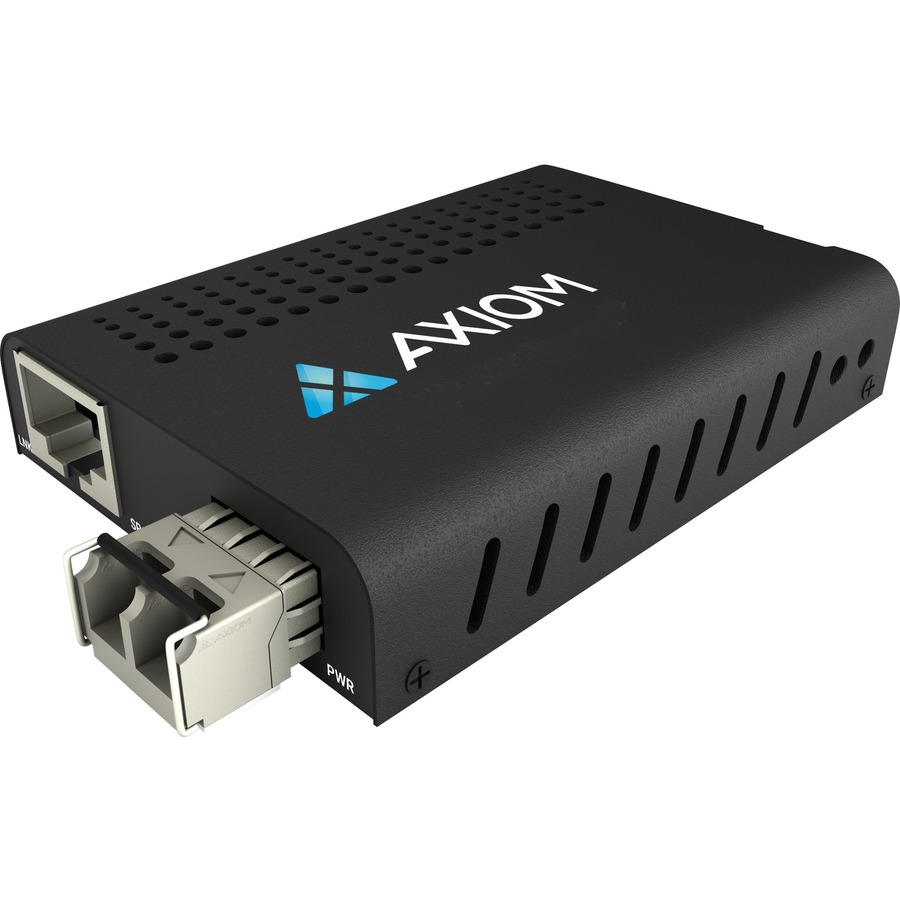

Axiom Transceiver/Media Converter
Manufacturer: Axiom Memory Solutions
Mfr. Part: MCP32-T2-S3L40-AX
Network (RJ-45) - 1x PoE+ (RJ-45) Ports - 1 x LC Ports - Single-mode - 1310 nm Fiber - Gigabit Ethernet - 1000Base-EX, 10/100/1000Base-TX - 40 km - AC/DC
About This Product
Overview
Features
The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
Features:
- 10/100/1000Base-TX UTP to 1000Base-FX fiber media conversion
- IEEE802.3at PoE+ PSE compatible
- Built-in AC/DC power supply
- Over-current protection
- DIP switch to set different configurations
- LFP (Link Fault Pass-through) support
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 1000Base-EX technology get up to 1000Mbps data transfer rate over optical fiber cable
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of PoE+ (RJ-45) Ports
- 1
- Number of LC Ports
- 1
- Media Type Supported
- Optical Fiber Twisted Pair
- Fiber Mode Supported
- Single-mode
- Fiber Optic Cable Wavelength
- 1310 nm
