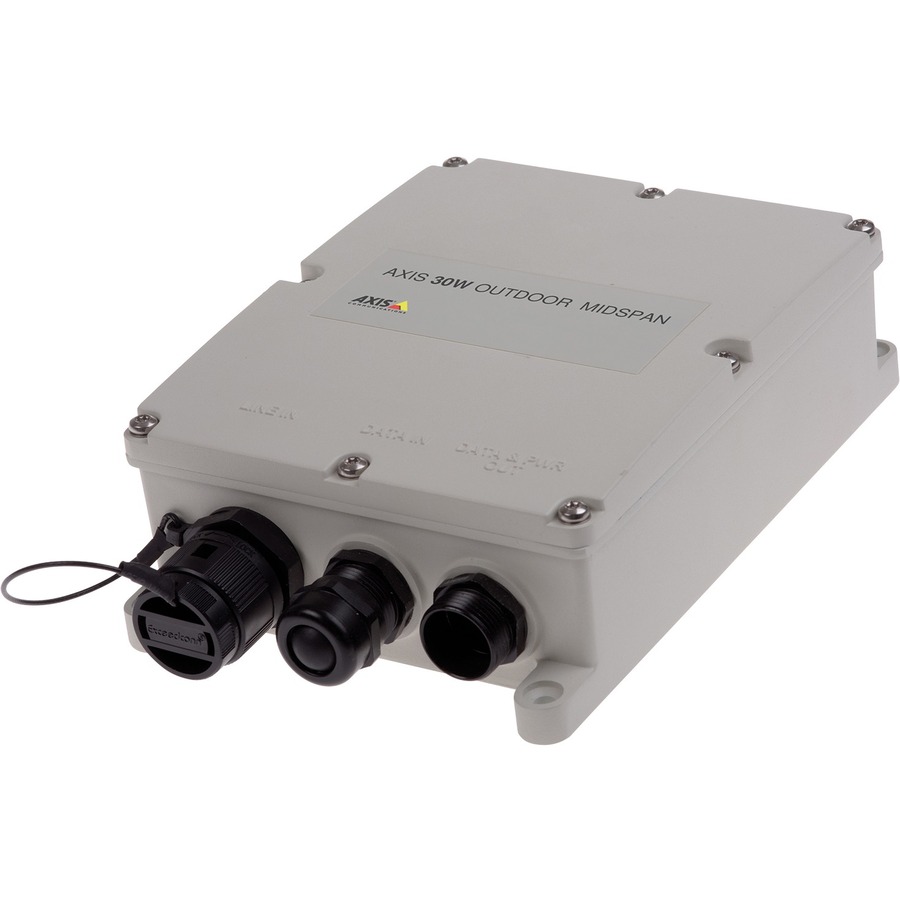

AXIS 30 W Outdoor Midspan
Manufacturer: Axis Communications
Mfr. Part: 01944-001
120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W
About This Product
Overview
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. A midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure. AXIS 30 W Outdoor Midspan is compatible with IEEE 802.3af and 802.3at compliant Axis network devices. The midspan ensures safe and reliable operation in outdoor environments. Furthermore, it offers surge protection for both the AC and the PoE ports ensuring protection to the equipment from outdoor surges up to 6kV.
- Outdoor-ready, IP66/67- and NEMA 4X-rated
- IEEE 802.3af and 802.3at
- 100 to 240 V AC
- Railway compliant EN 50121-4 and IEC 62236-4
Quick Specifications
- Product Type
- PoE Injector
- Protection Type
- Surge Protection
- Input Voltage
- 120 V AC 230 V AC
- Maximum Output Voltage
- 54 V DC
- Maximum Output Power
- 30 W
- Input Ports
- 1 x 10/100/1000Base-T
- Output Ports
- 1 x PoE
- Form Factor
- Wall/Pole Mountable
