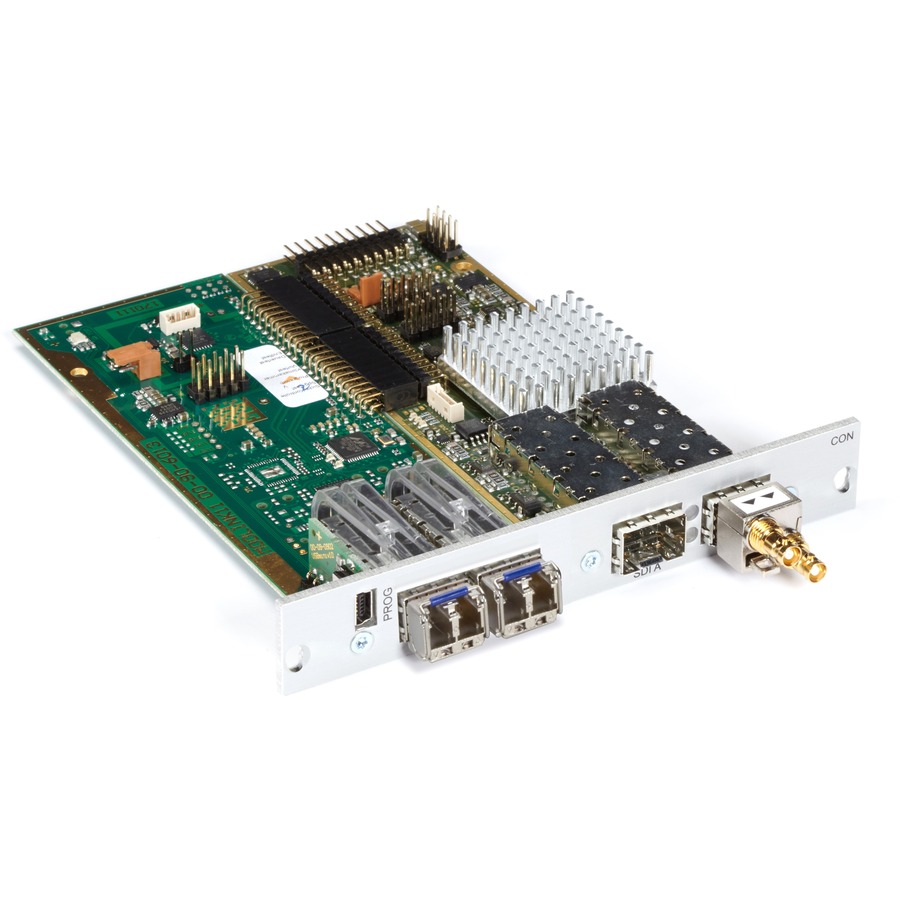

Black Box DKM Modular Receiver Card, SDI over SM Fiber
Manufacturer: Black Box Corporation
Mfr. Part: ACX1MR-SDI-2S
1 Computer(s) - Full HD - 1920 x 1080 Maximum Video Resolution - 1 x USB - TAA Compliant
About This Product
Overview
The DKM modular extenders are comprised of Modular Housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix setup,
- SDI receiver module for DKM Modular Housing chassis.
- Dual single-mode fiber links provide redundancy.
- Converts from SDI to DVI, HDMI and DisplayPort and vice versa.
- Supports SDI, HD-SDI and 3GSDI resolutions (720p @ 50/60, 1080i @ 50/60, 1080p @ 50/60).
- Includes an integrated scaler so the appropriate resolution is displayed.
- Features integrated interlacing and de-interlacing.
- Provides SDI audio embedding and de-embedding.
Quick Specifications
- Product Model
- ACX1MR-SDI-2S
- Packaged Quantity
- 1
- Product Type
- KVM Extender Receiver
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Device Type
- KVM Extender
- Graphic Mode
- Full HD
- Maximum Video Resolution
- 1920 x 1080
