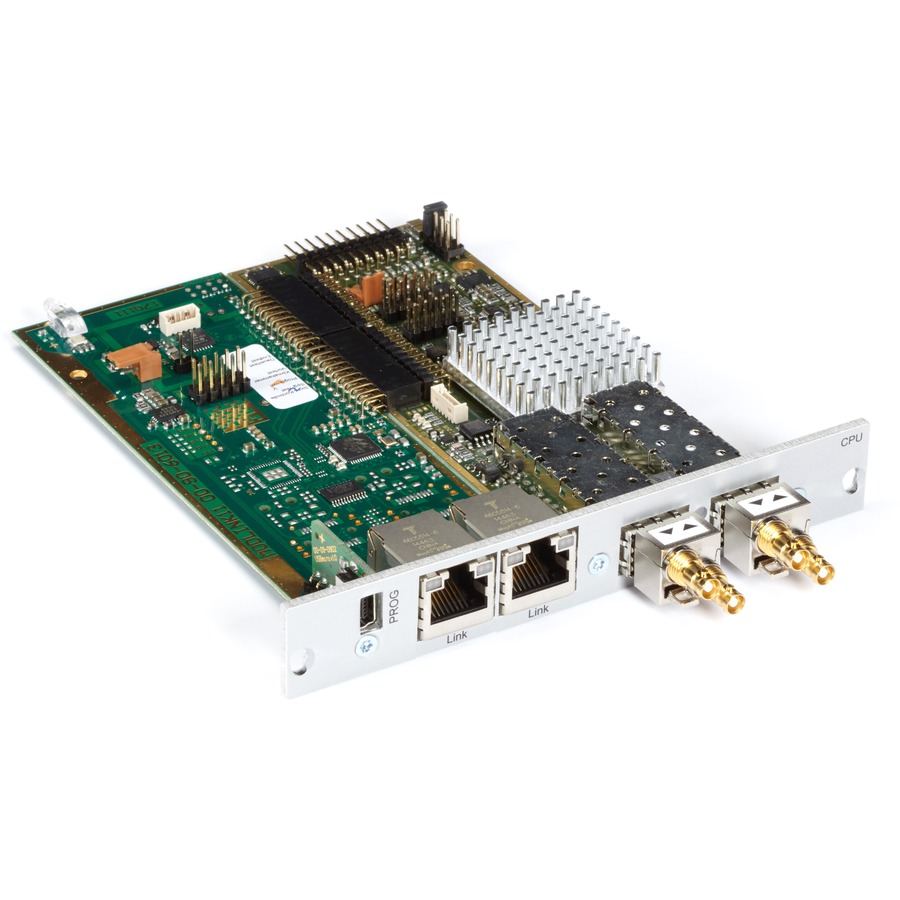

Black Box DKM FX Modular KVM Extender Transmitter Interface Card - SDI, USB, (2) CATx
Manufacturer: Black Box Corporation
Mfr. Part: ACX1MT-SDI-2C
1 Computer(s) - 400 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 2 x Network (RJ-45) - 1 x USB - TAA Compliant
About This Product
Overview
The DKM modular extenders are comprised of Modular Housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix setup,
- SDI transmitter module for DKM Modular Housing chassis.
- Dual CAT5e, CAT6 or CAT6A links provide redundancy.
- Converts from SDI to DVI, HDMI and DisplayPort and vice versa.
- Works over CAT5e, CAT6 and CAT6A cabling.
- Supports SDI, HD-SDI and 3GSDI resolutions (720p @ 50/60, 1080i @ 50/60, 1080p @ 50/60).
- Includes an integrated scaler so the appropriate resolution is displayed.
- Features integrated interlacing and de-interlacing.
- Provides SDI audio embedding and de-embedding.
Quick Specifications
- Product Model
- ACX1MT-SDI-2C
- Packaged Quantity
- 1
- Product Type
- KVM Extender Transmitter
- Connectivity Technology
- Wired
- Number of Computers Supported
- 1
- Maximum Operating Distance
- 400 ft
- Device Type
- KVM Extender
- Graphic Mode
- Full HD
