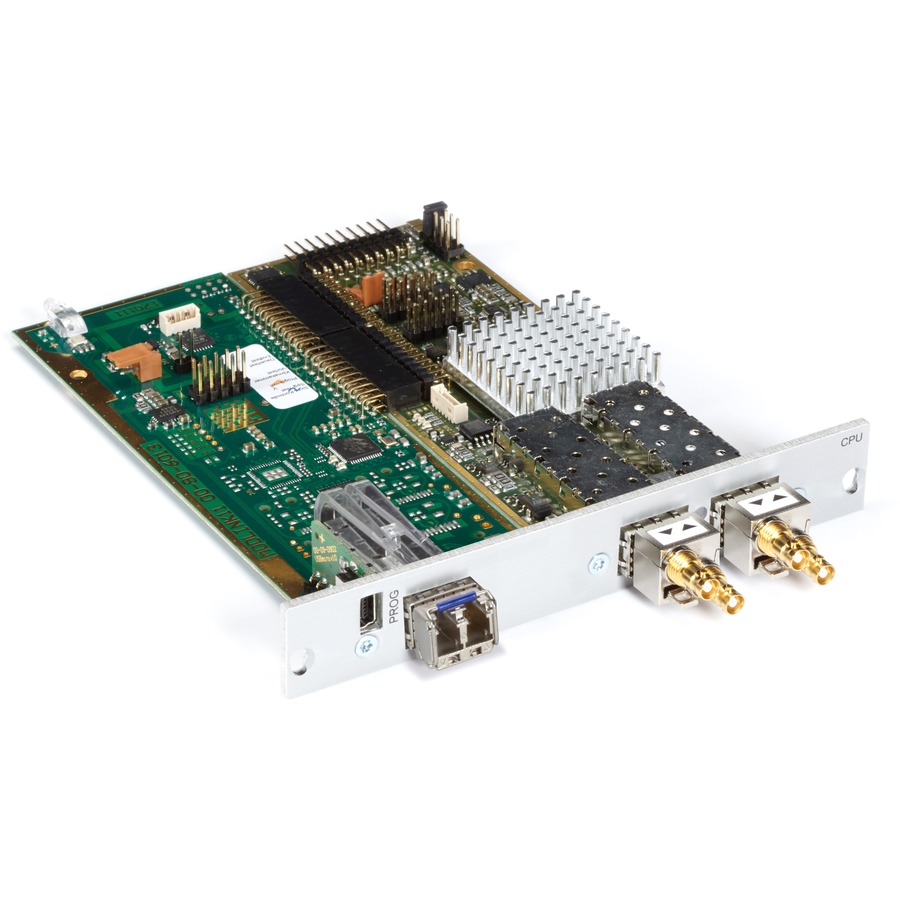

Black Box DKM Modular Transmitter Card, SDI over SM Fiber
Manufacturer: Black Box Corporation
Mfr. Part: ACX1MT-SDI-SM
32808.40 ft Range - Full HD - 1920 x 1080 Maximum Video Resolution - 1 x USB - TAA Compliant
About This Product
Overview
The DKM modular extenders are comprised of Modular Housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix setup, call our FREE Tech Support.
- SDI transmitter module for DKM Modular Housing chassis.
- Converts from SDI to DVI, HDMI and DisplayPort and vice versa.
- Works over single-mode fiber.
- Supports SDI, HD-SDI and 3GSDI resolutions (720p @ 50/60, 1080i @ 50/60, 1080p @ 50/60).
- Includes an integrated scaler so the appropriate resolution is displayed.
- Features integrated interlacing and de-interlacing.
- Provides SDI audio embedding and de-embedding.
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- KVM Extender Transmitter
- Connectivity Technology
- Wired
- Maximum Operating Distance
- 32808.40 ft
- Graphic Mode
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- USB
- Yes
- Number of USB Ports
- 1
