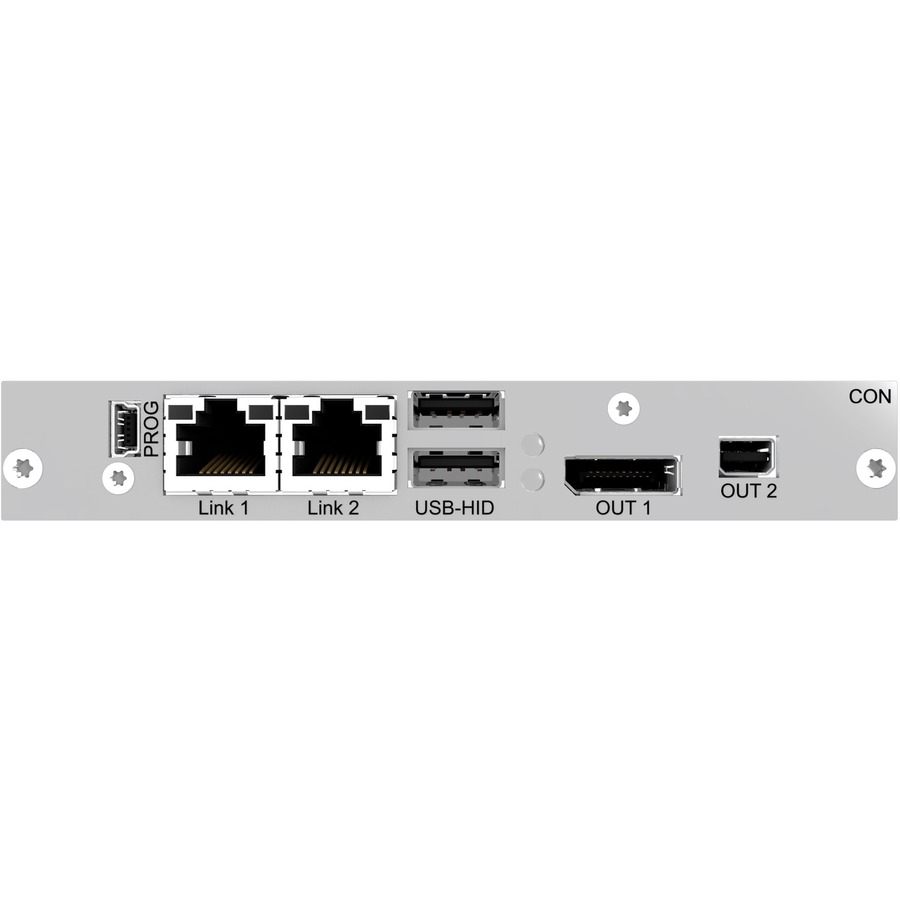

Black Box DKM FX KVM Extender Receiver
459.32 ft Range - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 2 x USB - DisplayPort - TAA Compliant
About This Product
Overview
The DKM FX Modular KVM Extender Interface Card extends visually lossless, high-resolution DisplayPort signals over CATx cable. It also features two USB HID ports so you can easily connect your keyboards, mice, and other devices. You can use the extender card with the DKM FX Chassis for matrix switching or as a point-to-point KVM extender.
The DKM FX Extender Card supports 4K resolutions (4096 x 2160 and 3840 x 2160) in single-head mode and up to 1920 x 1200 video in dual-head mode. Audio is directly reproduced by any connected displays with integrated speakers. The stereo signal can also be extracted and output separately.
- Non-Returnable|Dual-Head DP video with resolutions up to 1920 x 1080 on each video head|Single-head DP video with resolutions up to 4096 x 2160|Support for USB HID keyboards and mice|(2) CATx ports for redundant connectivity|Intelligent EDID management|Compatible with Windows, Linux, Mac, and other common operating systems|Supports embedded audio over the DP connector (if used with compatible endpoint)|
Quick Specifications
- Product Series
- DKM FX
- Packaged Quantity
- 1
- Product Type
- KVM Extender Receiver
- Connectivity Technology
- Wired
- Maximum Operating Distance
- 459.32 ft
- Device Type
- KVM Extender
- Graphic Mode
- 4K
- Maximum Video Resolution
- 3840 x 2160
