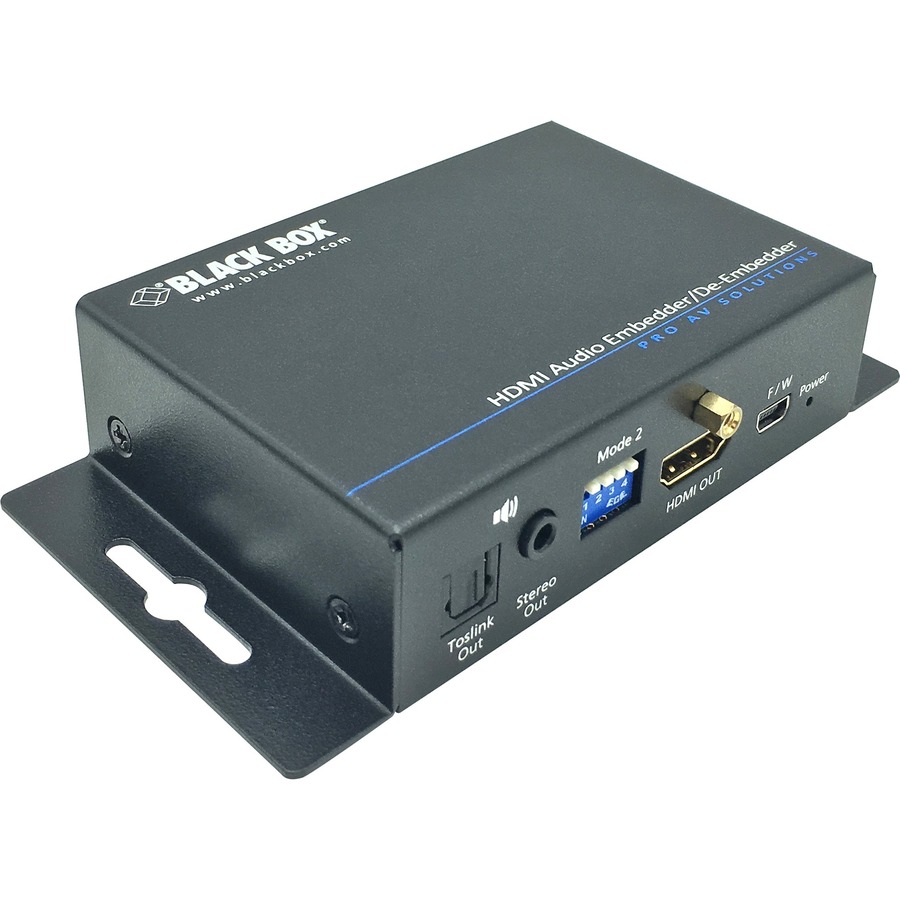

Black Box Audio Embedder/De-embedder - HDMI 2.0
Manufacturer: Black Box Corporation
Mfr. Part: AEMEX-HDMI-R2
Functions: Audio Embedding, Audio De-embedding - USB - Audio Line In - Audio Line Out - 1 - Mountable - TAA Compliant
About This Product
Overview
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Create audio channels where there was not an existing one.
- De-embed audio from HDMI signal and output it to 3.5-mm analog or digital optical sound systems.
- Can de-embed audio without being connected to an HDMI display.
- Supports embedding and de-embedding at the same time.
- Controlled through simple DIP switch configuration.
- 2-in-1 solution.
- Add audio to a video signal or extract audio from an HDMI signal with embedded audio.
- Support HDMI 2.0 with 4K60 video.
- HDCP 2.2 compliant.
- Supports audio embedding or extraction via analog stereo or digital TOSLINK.
- Supports ARC audio extraction via TOSLINK.
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.
- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Create audio channels where there was not an existing one.
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Signal Extractor
- Functions
- Audio Embedding Audio De-embedding
- USB
- Yes
- HDMI
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Form Factor
- Mountable
