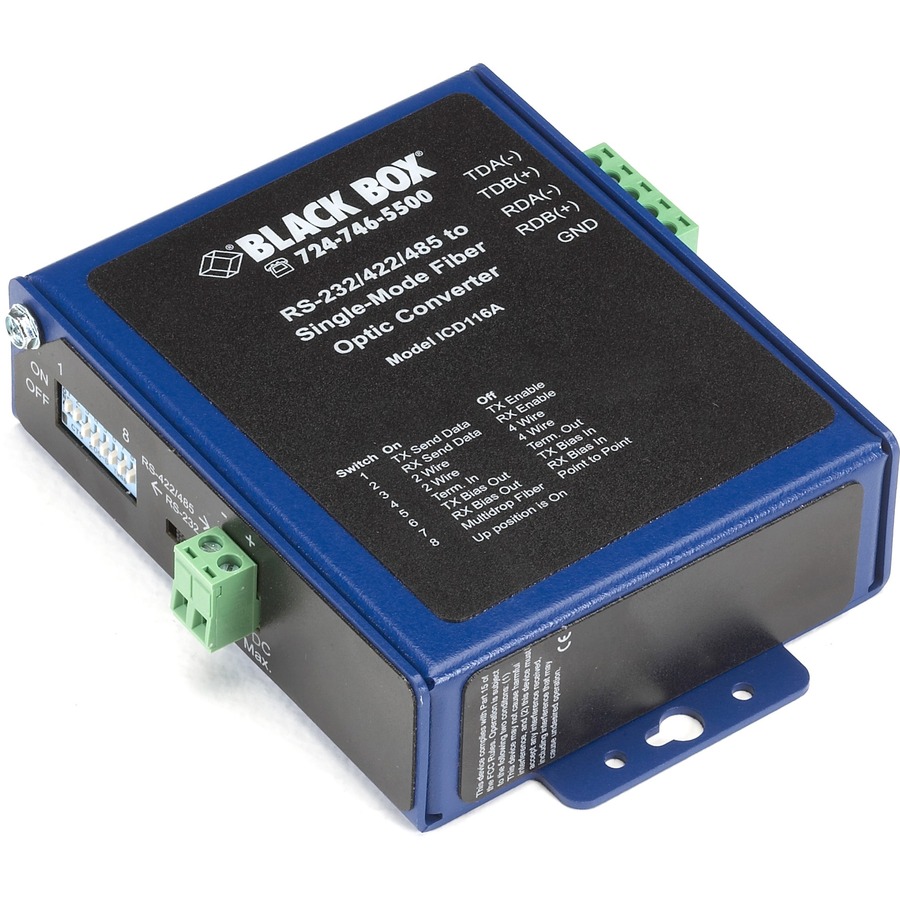

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Manufacturer: Black Box Corporation
Mfr. Part: ICD116A
1 x SC Ports - 15 km - Rail-mountable - TAA Compliant
About This Product
Overview
Meets stringent IEC and IEEE specs.
Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.
Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).
Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.
Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).
- A heavy-duty, industrial-strength serial-to-fiber converter
- Converts serial signals for single mode fiber transmission up to 15 kilometers (9.3 mi.)
- Rugged, IP30-rated metal case for panel mounting.
- Tolerates temperatures ranging from -30 to +185º F (-40 to +85º C).
- Designed to withstand both shock and vibration
- Boasts 2-kV triple isolation for safeguarding data and equipment
- Supports fiber ring communications with 31 other units
Quick Specifications
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- No
- DVI
- No
- USB
- No
- Management Port
- No
- Number of SC Ports
- 1
- Media Type Supported
- Optical Fiber
