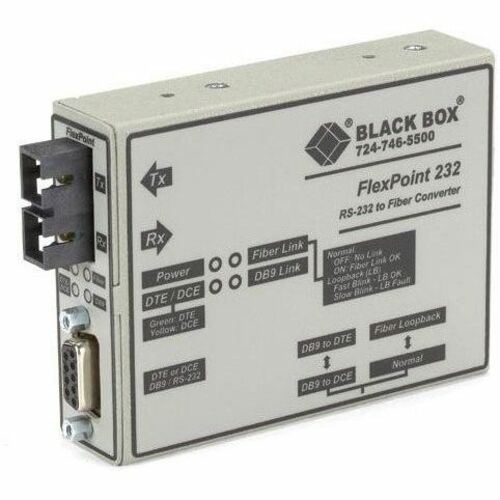

Black Box Flexpoint Async RS232 Extender Over Fiber - DB9 Female to Multimode, 2.5 km
Manufacturer: Black Box Corporation
Mfr. Part: ME660A-MSC-R2
2 x SC Ports - Multi-mode - 1310 nm Fiber - 2.50 km - DC - Rack-mountable, Wall Mountable, DIN Rail Mountable, Standalone - TAA Compliant
About This Product
Overview
This multimode fiber extender drives data up to 1.5 mi. (2.5 km). The extender autosenses speeds up to 115.2 kbps and works as a standalone or a hot-swappable chassis-based extender.
The extender is easy to install and includes a DC power supply. Or, you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
Featuring DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling, the extender supports half- and full-duplex operation.
The extender also has remote loop capability for remote fiber testing and LEDs for status monitoring.
- Full duplex operation over MM fiber
- Data rate up to 115.2 kbps
- Range of up to 2.5 km (1.5miles) at 115.2 kbps over MM fiber
- DCE/DTE switch for easy direct connection no special cables needed.
- Remote loop capability for remote fiber testing and LEDs for status monitoring.
- Works as serial RS-232 fiber converter and extender.
Quick Specifications
- Product Line
- FlexPoint
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Number of SC Ports
- 2
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1310 nm
- Maximum Distance Supported
- 2.50 km
