Brainboxes Pure Embedded 10/100 5 Port Industrial Ethernet Switch
Manufacturer: Brainboxes Limited
Mfr. Part: PE-505
5 Ports - Fast Ethernet - 100Base-T - 2 Layer Supported - 2.50 W Power Consumption - Twisted Pair - Compact
About This Product
Overview
Pure compatibility, pure stability, pure design. The perfect fit for any stable, future-proof system, even where space is limited.

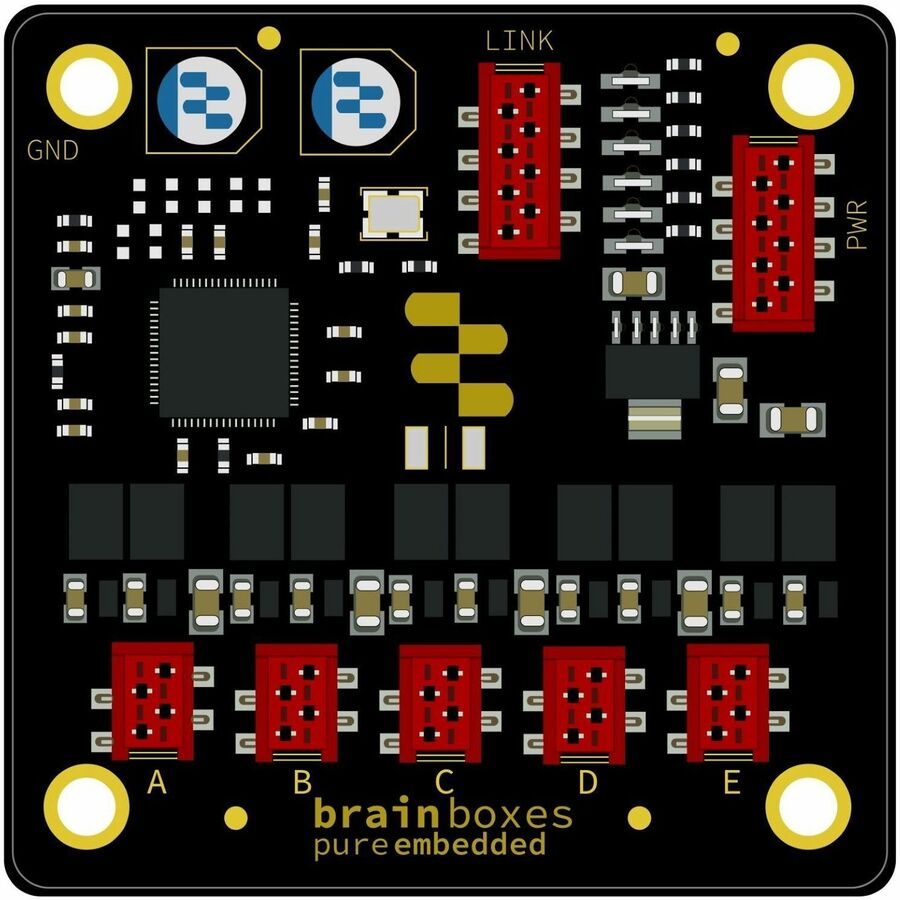

PE-505 Pure Embedded 5 Port Industrial Ethernet Switch has a mega compact form - at 55x55x10mm it's smaller than a standard business card.
3D CAD files and PCB footprints, combined with logical placements and fixed distances, provide seamless integration with design software.
Board-to-board and board-to-cable connection options, with LEDs visible in all orientations, with the option of routing through fibre optic light pipes.
- Eval-kit available
- Mega compact form - smaller than a standard business card (55x55x10mm)
- Industrial operating temp (-40 °C to +85 °C)
- Seamless integration with design software - logical placements and fixed distances
- Board to board and board to cable connection
- LEDs visible in all orientations - can be directed to outer casing via fibre optics or light pipe
- Comprehensive resources: DXF file, PCB footprint and 3D download
Quick Specifications
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 5 x Fast Etherent Network
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-T
- Layer Supported
- 2
