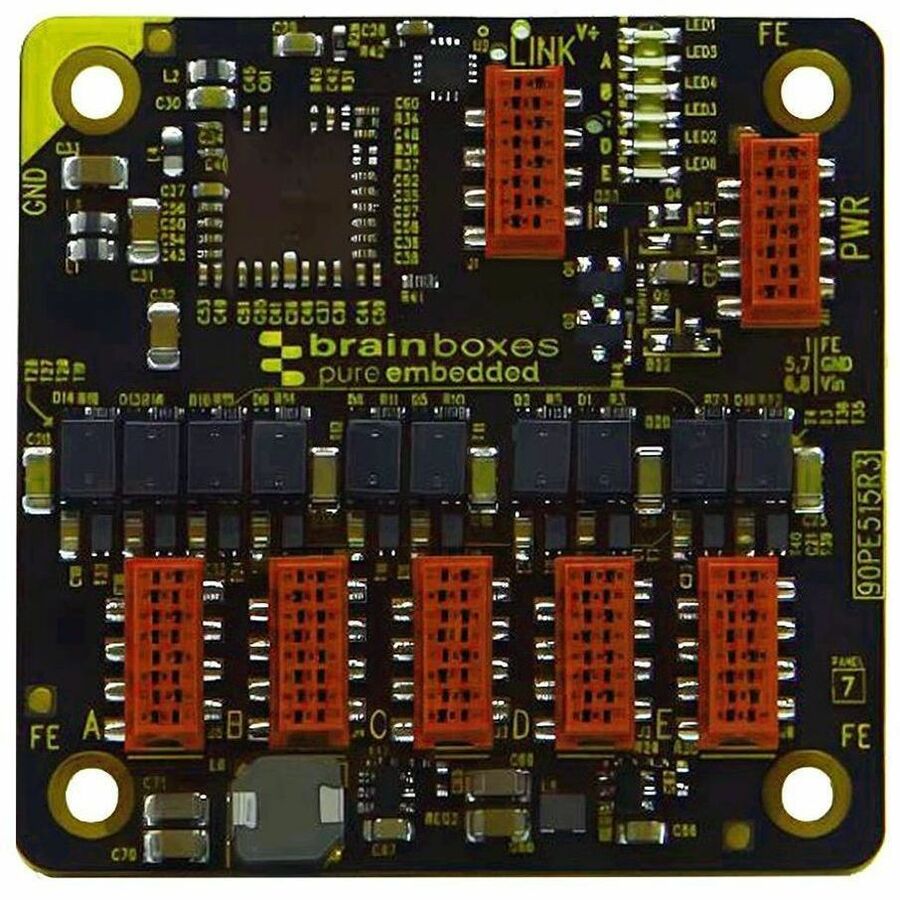

Brainboxes Pure Embedded 1G 5 Port Industrial Ethernet Switch
Manufacturer: Brainboxes Limited
Mfr. Part: PE-515
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - Twisted Pair - Compact
About This Product
Overview
Overview
The perfect fit for any stable, future-proof system, even where space is limited.
- Stability of design guaranteed compatibility until at least 2035 (min. 10 years)
- Compact form - smaller than a standard business card (55x55mm)
- Seamless integration with design software - logical placements and fixed distances
- 3D CAD files
- Board-to-board and board-to-cable connection
- LEDs visible in all orientations - option to route through fibre
- 5 port 10/100/1000Mbps switch (10BASE-T/100BASETX/1000BASE-T)
- 3.3 to 5 VDC Input Reverse Polarity Protected
- Transient Voltage Protected
- 1500V magnetic isolation between ports
- Auto MDI/MDIX
- Power and link indicators for all ports visible from all angles
- Board-to-board and wire-to-board compatible
- IDC style connectors (Compatible with board-to-board and wire-to-board connections)
- IEEE 802.3x flow control
- Non-blocking layer 2 operation
Quick Specifications
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 5 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Maximum Data Transfer Rate
- 128 MB/s
