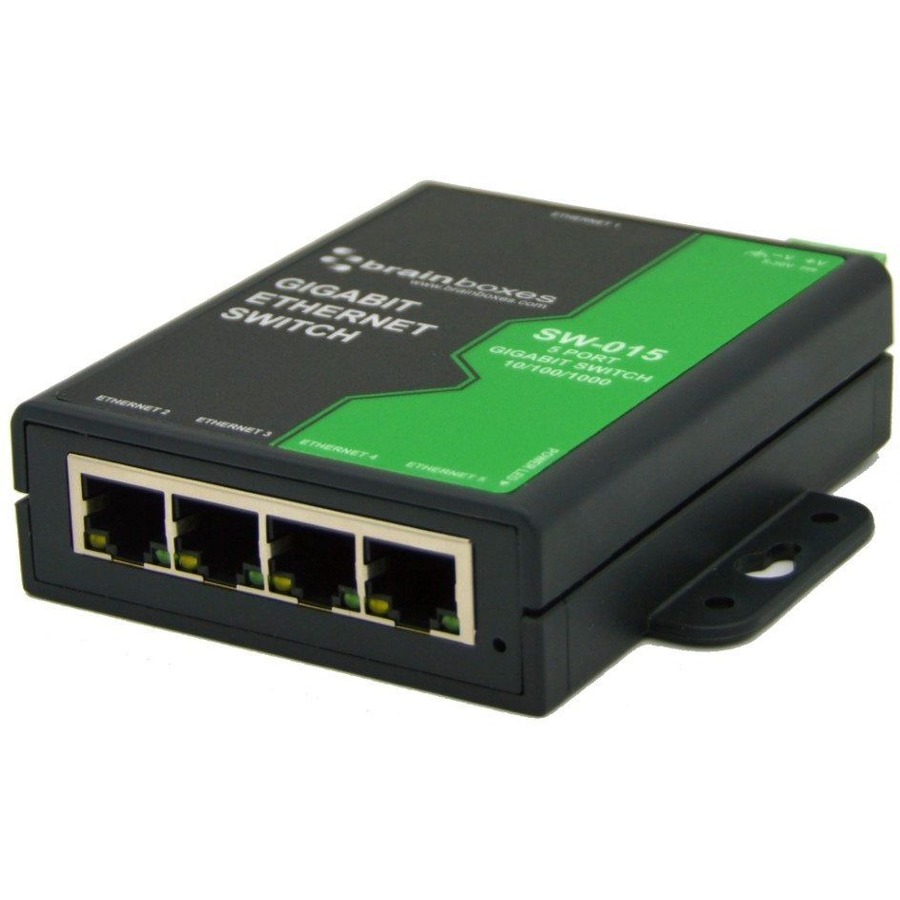

Brainboxes Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
5 Ports - 2 Layer Supported - 3.60 W Power Consumption - Twisted Pair - DIN Rail Mountable, Wall Mountable - Lifetime Limited Warranty
About This Product
Overview
With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.
Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.
As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)
Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.
- 5 Gigabit Ethernet ports
- Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
- Wide operating temperature range: -10ºC to +60ºC/-14ºF to +140ºF
- Bi-directional data flow at super-fast speed
- Small Footprint Case, only 23mm wide, 94mm deep
Quick Specifications
- Product Model
- SW-015
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 5
- Port/Expansion Slot Details
- 5 x Gigabit Ethernet Network
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Layer Supported
- 2
