Brainboxes Embedded Industrial 4 Port Gigabit Ethernet Switch
Manufacturer: Brainboxes Limited
Mfr. Part: SW-114
4 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 3.60 W Power Consumption - Twisted Pair - Rack-mountable - TAA Compliant
About This Product
Overview
Embedded industrial 4 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
- 4 Gigabit Ethernet ports
- Wide voltage input range: +5V to +30VDC - can be powered by a variety of sources
- Industrial temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
- Redundant dual power inputs - reduces risk of power outage

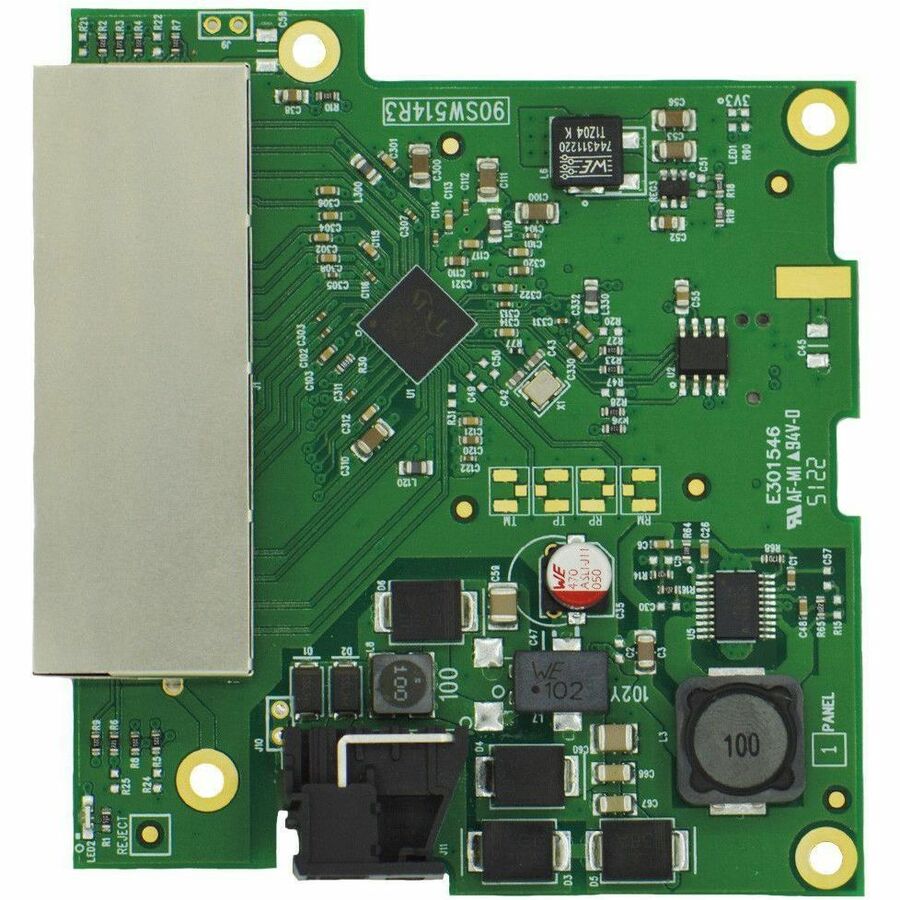

- Mounting holes in PCB
Quick Specifications
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 4
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 4 x Gigabit Ethernet Network
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- Layer Supported
- 2
