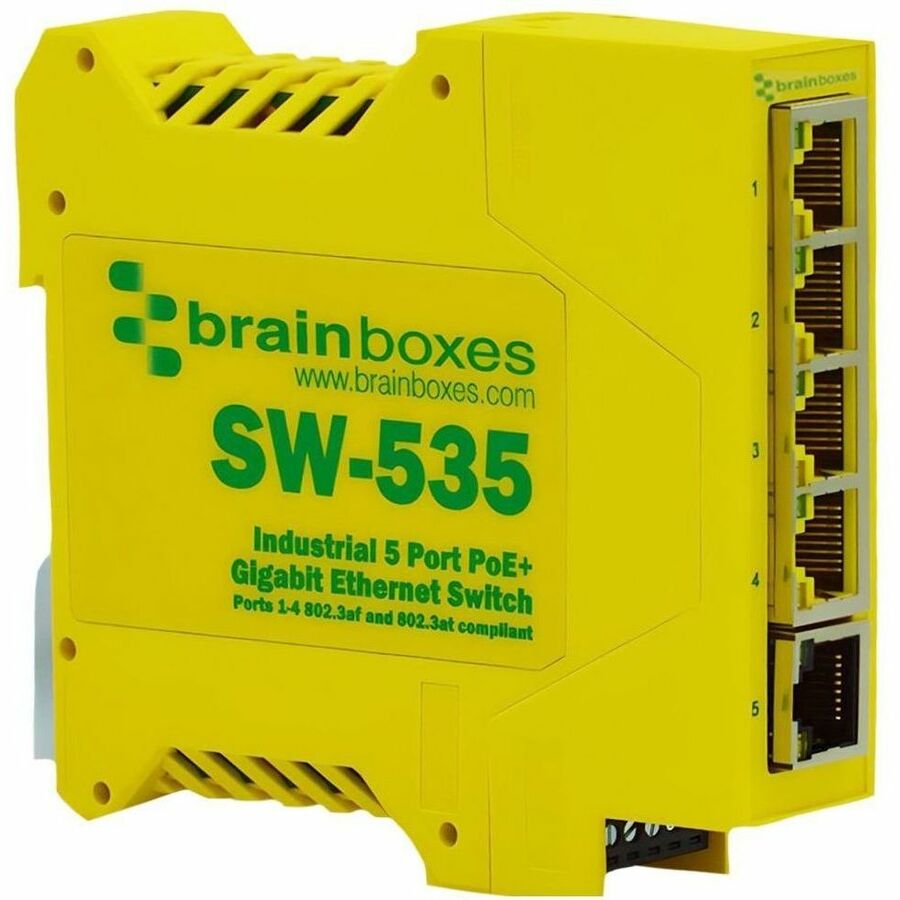

Brainboxes SW-535 Ethernet Switch
5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5.50 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - DIN Rail Mountable, Compact - Lifetime Limited Warranty - TAA Compliant
About This Product
Overview
Industrial Compact 5 Port PoE+ Gigabit Ethernet device.
Simplify industrial setups with streamlined power and automatic PoE, setting the standard for efficient CCTV and Vision Systems.
Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required.
Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more.
- Streamlined installation - electrical power and data over the same cable
- 4 PoE+ capable ports - fully compliant to IEEE 802.3af/at
- High PoE power budget 90W @ 70ºC between all 4 PoE ports simultaneously - efficiently deliver power to connected devices
- Robust industrial design - operating temp -40°C to +70°C / -40°F to +158°F
- Redundant dual power inputs +44V to +57V DC: enhances system reliability
- Smart LED indicators: real-time status information, quick visual monitoring
- Compatible DIN rail power supply available:PW-301
Quick Specifications
- Product Model
- SW-535
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 5
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 5 x 10/100/1000BASE-T RJ-45 PoE+ Network Port
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
