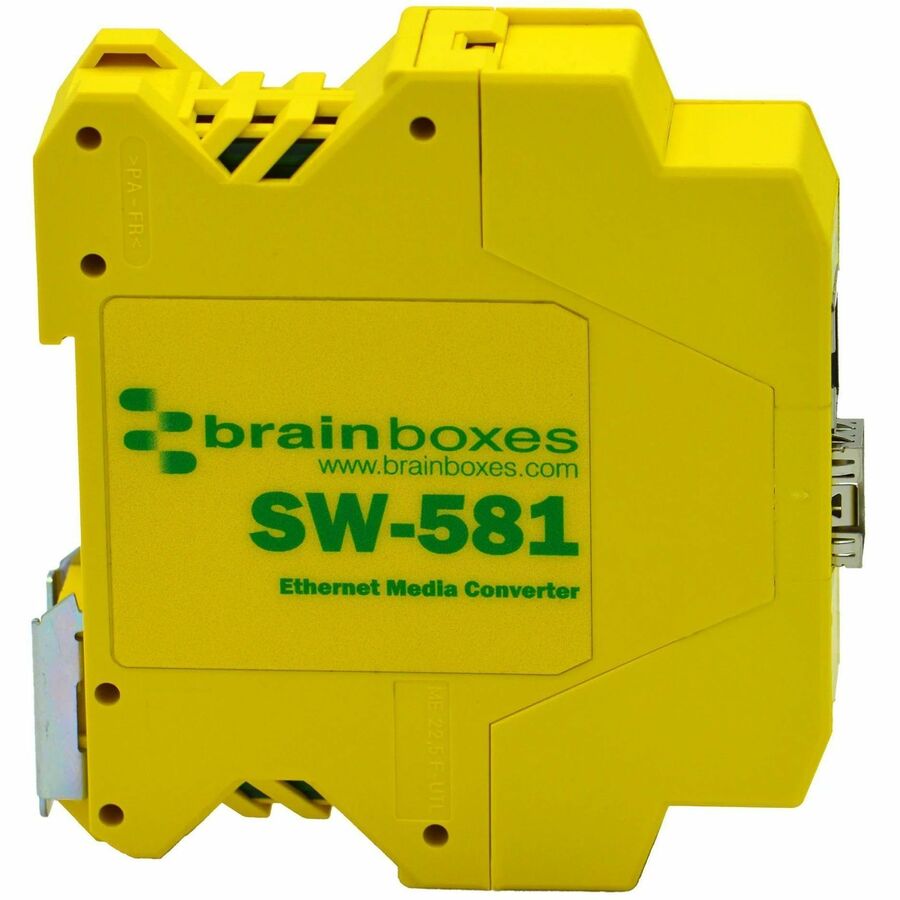

Brainboxes SW-581 Transceiver/Media Converter
1 x Network (RJ-45) - Gigabit Ethernet - 1000Base-X - 1000 Mbit/s - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply - DIN Rail Mountable - TAA Compliant
About This Product
Overview
Industrial Gigabit SFP Media Converter
Cost-effective connectivity - economical way to integrate devices into a fibre optic network. Scalability: Combine with other switches in the range to create a comprehensive and future-proof network solution
Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Cost-effective connectivity - economical way to integrate devices into a fibre optic network
- Plug and play integration - simple, targeted setup
- Allows for extended range and reliability of fibre optics
- Easy transition - bridge legacy devices and newer fibre optic infrastructure
- Industrial temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
- Jumbo Frame support up to 9K frames
- Integral DIN mount
- SFP Port Power Overcurrent protection
Quick Specifications
- Product Model
- SW-581
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Data Transfer Rate
- 1000 Mbit/s
- Total Number of Expansion Slots
- 1
