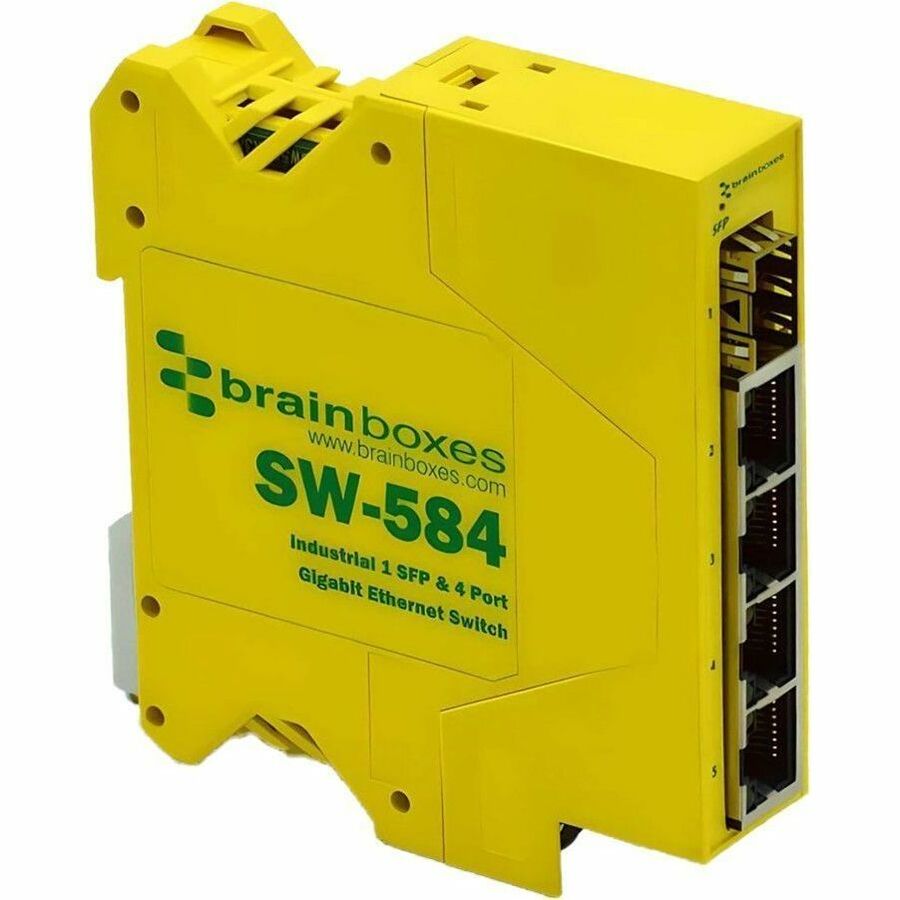

Brainboxes 1 SFP & 4 Port Gigabit Ethernet Switch
4 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 1 SFP Slots - 3.60 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable, Compact - Lifetime Limited Warranty
About This Product
Overview
SFP & Industrial Gigabit Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.
Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Fast, low cost, future-proof way to deploy long network segments
- Connect to wide variety of fibre optic and copper cable types
- High speed data connection over extended distances
- Reduce susceptibility to electromagnetic interference
- Industrial temperature range: -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
- Jumbo Frame support up to 9K frames
- Integral DIN mount
- SFP Port Power Overcurrent protection
Quick Specifications
- Product Model
- SW-584
- Product Type
- Ethernet Switch
- Features
- IP20
- Total Number of Network Ports
- 4
- Network (RJ-45)
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 4 x Gigabit Ethernet Network 1 x Gigabit Ethernet Expansion Slot
- Media Type Supported
- Twisted Pair Optical Fiber
