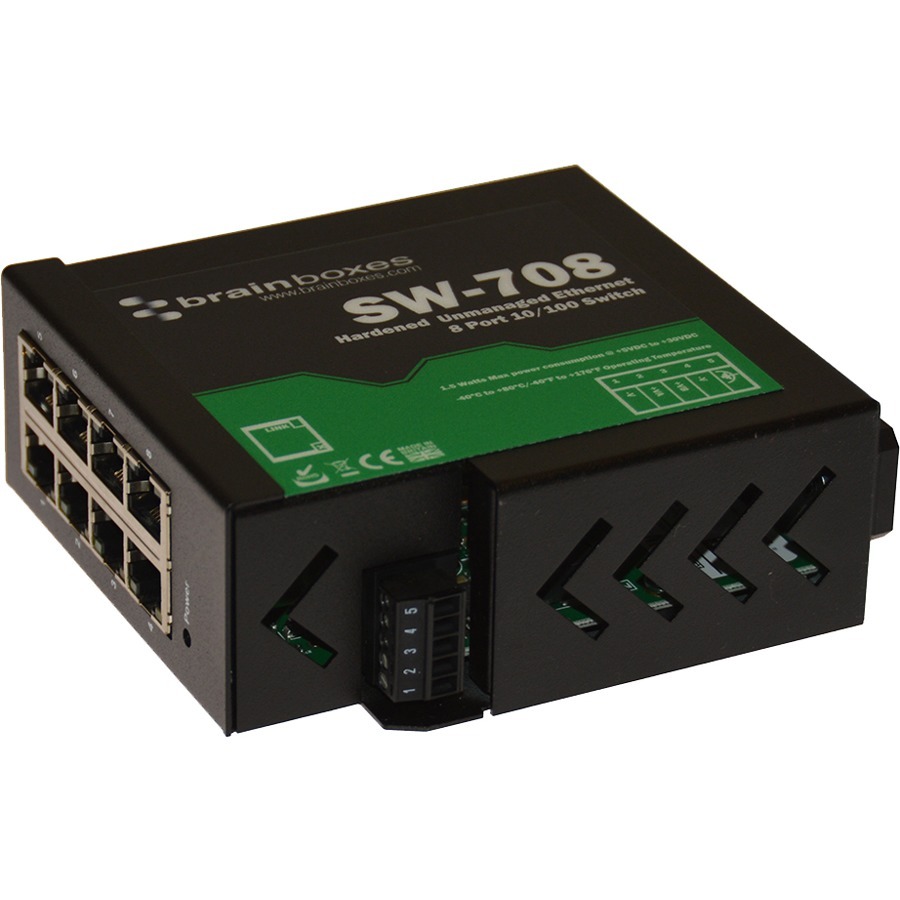

Brainboxes Hardened Industrial Ethernet 8 Port Switch DIN Rail Mountable
Manufacturer: Brainboxes Limited
Mfr. Part: SW-708
8 Ports - 2 Layer Supported - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty - TAA Compliant
About This Product
Overview
Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
- Hardened 8 Port Ethernet Switch
- Integrated DIN Rail Mount
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- No software required
- Lifetime Warranty and Support
Quick Specifications
- Product Model
- SW-708
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 8
- Modular
- No
- Port/Expansion Slot Details
- 8 x Fast Ethernet Network
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-T
