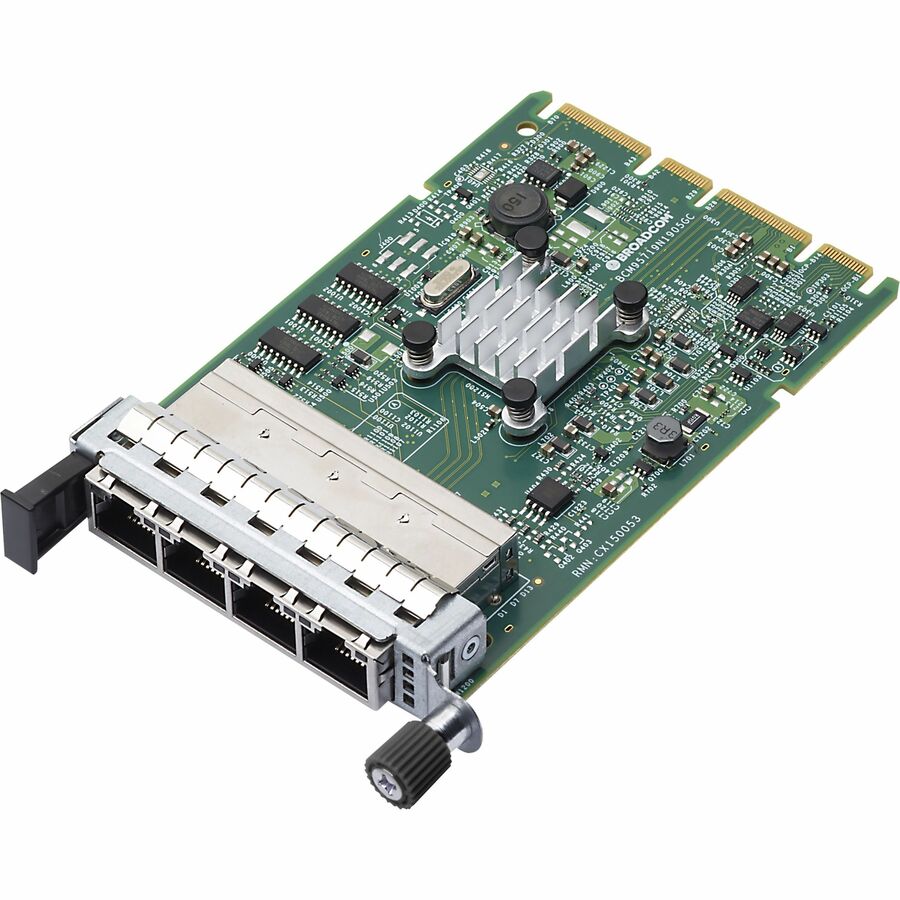

Broadcom N41T - 4 x 1GbE OCP 3.0 Adapter
PCI Express 2.0 x4 - 4 Port(s) - 4 - Twisted Pair - 10/100/1000Base-T - Plug-in Card
About This Product
Overview
Designed for today's enterprise and data center environments, Broadcom's 1G Ethernet Adapters are the ideal solution for multicore servers, delivering full line-rate throughput across all ports.
The N41T quad-port 1Gb OCP 3.0 adapter is a 13th-generation 10/100/1000BASE-T and 10/100/1000BASE-X Ethernet LAN controller solution for high-performance server and networking applications. The host interface supports a separate PCI Express function for each LAN interface. The N41GBT OCP 3.0 adapter includes I/O Virtualization (IOV) features such as 17 receive and 16 transmit queues, and 17 MSI-X vectors with flexible vector-to-queue association. These IOV features enable the BCM5719 to support the VMWare® NetQueue and Microsoft® VMQ technologies.
The N41T OCP 3.0 adapter includes a comprehensive set of hardware features that the system may use to implement IEEE 1588 or IEEE 802.1AS-based time synchronization. These hardware features include a high-precision clock, timestamp registers for receive/transmit packets, and programmable trigger inputs and watchdog outputs.
- Enjoy the super fast Gigabit Ethernet connection by inserting this Gigabit Ethernet card into your computer
- Enjoy superfast data transfer of up to 2000 MB/s with PCI Express 2.0 x4 card, between the network card and motherboards
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10/100/1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
Quick Specifications
- Product Model
- N41T
- Product Type
- Gigabit Ethernet Card
- Features
- Wake on LAN (WOL)
- Host Interface
- PCI Express 2.0 x4
- Total Number of Ports
- 4
- Number of Network (RJ-45) Ports
- 4
- Media Type Supported
- Twisted Pair
- Network Technology
- 10/100/1000Base-T
