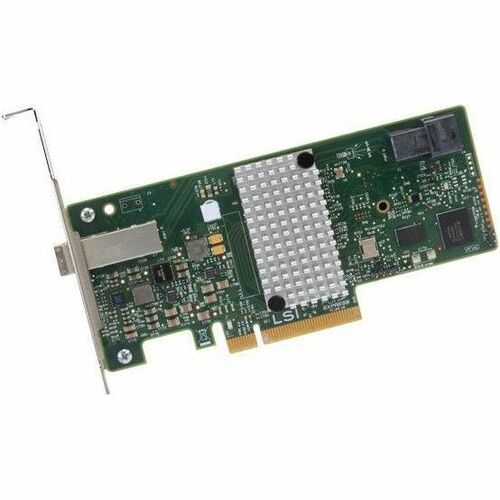

Avago 9300-8e Sas Controller
12Gb/s SAS, Serial ATA/600 - PCI Express 3.0 x8 - Low-profile - Plug-in Card - Mini SAS HD SFF8644 Two (x4) - 8 Total SAS Port(s) - 8 SAS Port(s) External - PC, SPARC, Linux - Windows, Linux, SUSE Linux, Red Hat Linux, Solaris, FreeBSD OS Supported Operating System
About This Product
Overview
The SAS 9300 8 and 4-port, 12Gb/s SAS host bus adapter family provides increased connectivity and maximum performance for high-end servers and appliances within internal storage, or connecting to large scale storage enclosures.
The SAS 9300 HBA family is based on the SAS 3008 IO controller, integrating the latest enhancements in SAS and PCI Express® technology. Each host bus adapter also supports 8 or 4 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The 9300 adapter family supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifi cations. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane. Avago Technologies provides a broad suite of industry standard operating system drivers.
- Eight/four ports of 12Gb/s SAS + SATA ports
- Eight lanes of PCI Express 3.0
- Low-profile form factor
- Mini-SAS HD connectors
- SAS 3008 12Gb/s SAS+SATA controller
- Supports SSDs, HDDs, and tape drives
Quick Specifications
- Product Model
- 9300-8e
- Packaged Quantity
- 1
- Product Type
- SAS Controller
- Host Interface
- PCI Express 3.0 x8
- Controller Type
- 12Gb/s SAS Serial ATA/600
- RAID Supported
- No
- Maximum Data Transfer Rate
- 12 Gbit/s
- Device Supported
- Hard Drive Solid State Drive Storage System
