Cisco Prisma Data Multiplexer/Demultiplexer
Manufacturer: Cisco Systems, Inc
Mfr. Part: 4002272
4 Data Channels - Optical Fiber
About This Product
Overview
Coarse Wave Division Multiplexing (CWDM) has gained prevalence in multi-wavelength digital transport architectures because it enables the use of very low cost un-cooled DFB laser transmitters. Moreover, powering requirements are reduced and reliability is increased.

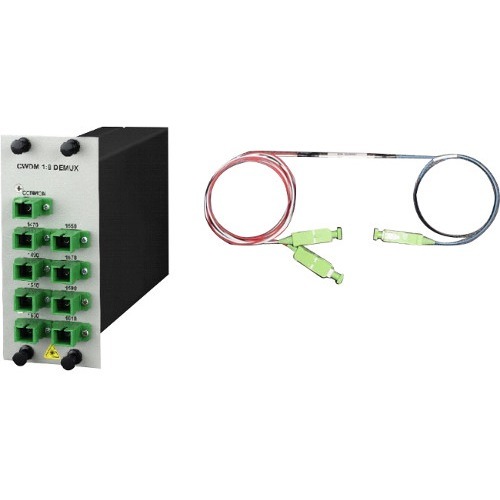

Prisma® CWDM filters provide the essential wavelength muxing/demuxing in these systems. Configurations of 1, 4, 8 or 10 channels are available to provide maximum design flexibility. The single channel version can be ordered in any of the 10 standard ITU-grid wavelengths and functions as Optical Add-Drop Mux (OADM). The 4, 8 and 10 channel versions are designed for minimum flat insertion loss.
Prisma® CWDM filters provide the essential wavelength muxing/demuxing in these systems. Configurations of 1, 4, 8 or 10 channels are available to provide maximum design flexibility. The single channel version can be ordered in any of the 10 standard ITU-grid wavelengths and functions as Optical Add-Drop Mux (OADM). The 4, 8 and 10 channel versions are designed for minimum flat insertion loss.
- Available in single channel Add/Drop or 4, 8 and 10 channel versions on standard ITU-grid wavelengths (1431 nm-1611 nm) on 20 nm spacing
- Low Insertion loss (4, 8 and 10 channel versions optimized for minimum flat insertion loss)
- SC/APC connectors standard, other options available
- Industry Standard LGX-Style enclosures for indoor device
- Raw-filter or cassette style package for outside plant applications
- OADM available in raw-filter style package for outside plant applications
- Mux/Demux available in cassette style package for outside plant applications
- Applications such as Service Navigators, Games, and many other future applications
Quick Specifications
- Product Line
- Prisma
- Product Type
- Data Multiplexer/Demultiplexer
- Number of Data Channels
- 4
- Connectivity Technology
- Wired
- Media Type Supported
- Optical Fiber
- Fiber Optic Cable Wavelength
- 1510 nm 1570 nm
- Height
- 5.1"
- Width
- 1.2"
