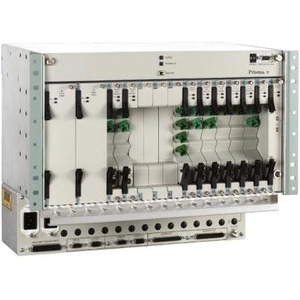

Cisco Prisma II Network Equipment Chassis

In optical transmission systems, the network platform forms the foundation of the product family. The Cisco® Prisma® II platform provides network operators with the unique features that enable the deployment of a carrier class-type network. Advanced features such as high usable module density, broad operating temperature range for field deployment without environmental controls, and a unique design optimized for easy module insertion, setup, and administration make the Prisma II platform the key to increased network reliability, scalability, and more costeffective deployments.

Features

• 1 GHz capable
• High usable module density (up to 13 modules per chassis)
• Operating temperature range suitable for outdoor field deployment
• Solid metal construction
• Low power consumption
• Superior heat dissipation and air circulation
• Front access and rear access chassis available
• Technician-friendly design with easy module insertion and removal, setup, and administration
• High-speed passive backplane to support migration to digital transmission technologies such as Cisco's BDR Digital Reverse System
• Excellent fiber, powering, and RF cable management
• Advanced SNMP-oriented network monitoring and control over multiple network interfaces
• Multiple connector and powering options
• User-friendly alarm setup
• Master / Slave Redundant switching between modules
• Supports Web Browser and Command Line Interface (CLI)

Platform Components
The Prisma II platform consists of the following modules/components:

• Chassis with fan tray (front and rear access)
• Power Supply System
• Intelligent Communications Interface Module 2 (ICIM2)
• Module Blanks
