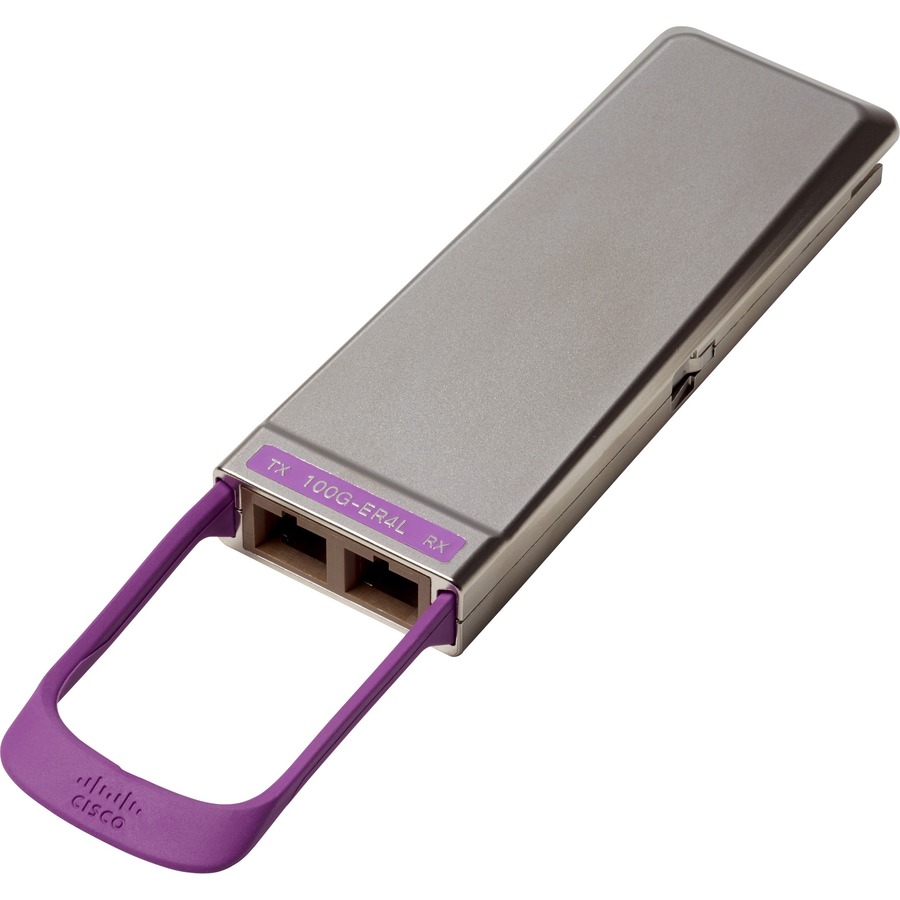

Cisco CPAK 100GBASE-ER4 Lite Module
For Optical Network, Data Networking - 1 x SC/PC Duplex 100GBase-ER4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-ER4 - Hot-swappable
About This Product
Overview
The primary application of the Cisco CPAK 100GBASE-ER4 Lite module is to support 100-Gbps optical links over standard single-mode fiber (SMF, G.652) terminated with SC connectors. Nominal power consumption is less than 7.5W.
The ER4 Lite module is compatible with the 100GBASE-ER4 standard and supports link lengths up to about 25 km over standard SMF, G.652. It delivers an aggregate data signal of 100 Gbps, carried over four LAN wavelength-division multiplexing (WDM) wavelengths operating at a nominal 25 Gbps per lane. The module can be used over longer distances in engineered links with CPAK-100G-ER4L modules at both ends. Optical multiplexing and demultiplexing of the four wavelengths are managed within the module.
- CFP is the single answer to all your desired and specified application execution needs
- With 100GBase-ER4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- 100 Gigabit Ethernet - High bandwidth performance, ease of use and reliable connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Single-mode fiber mode support for reliable, fast transfer, sharing, and access to the data and information
- Hot-swappable form factor for added reliability and dependability
- CFP with optical network application/usage for maximum productivity and usability
Quick Specifications
- Product Type
- CFP
- Application/Usage
- Optical Network Data Networking
- Total Number of Ports
- 1
- Connector Type
- SC/PC
- Interfaces/Ports Details
- 1 x SC/PC Duplex 100GBase-ER4 Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Ethernet Technology
- 100 Gigabit Ethernet
