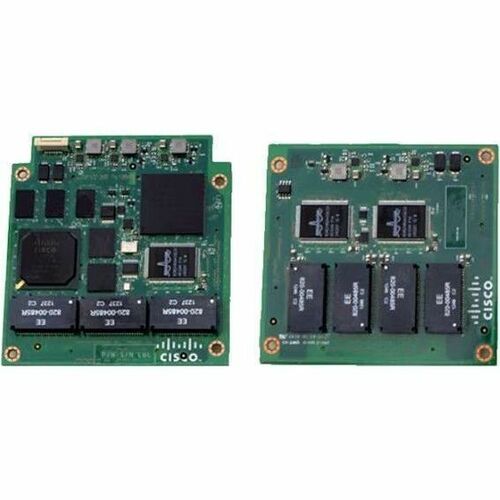

Cisco Embedded Service 2020 Switch, Main board, Conduction cooled, LAN Lite software
10 Ports - Manageable - Gigabit Ethernet - 10/100Base-T, 100/1000Base-T - 2 Layer Supported - Single-mode, Multi-mode - 6.50 W Power Consumption - Twisted Pair, Optical Fiber - Compact - 1 Year Limited Warranty
About This Product
Overview
The Cisco Embedded Service 2020 Series Switches are optimized for mobile and embedded networks that require switching capability in harsh environments. Customers in such industries as oil and gas, mining, transportation, and defense are all increasingly requiring IP based networks. The flexible, compact form factor of the switch cards, complemented by Cisco IOS®Software, provides highly secure data, voice, and video communications to stationary and mobile network nodes.
Product Overview
The ESS 2020 is designed for embedded applications requiring low cost, small size, and ruggedization:
- Consists of main board and optional port expansion board
- Conforms to common PC104 form factor board size (approximately 4" x 4")
- Main board:
2x Gigabit Combo ports: Small Form-Factor Pluggable (SFP) (100 Mb and 1G) or RJ45 uplink
8x 10/100BASE-T Ethernet ports
RS-232 console
Primary Features
- Security:Dot1x, port security, and Dynamic Host Configuration Protocol (DHCP) allow dynamic port-base authentication; Secure Shell Version 2 (SSHv2); Simple Network Management Protocol Version 3 (SNMPv3) provides encrypted administrator traffic during Telnet and SNMP sessions; TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users
- Resiliency:Flex links for fast recovery, Cisco Resilient Ethernet Protocol (REP) for fast convergence
- Manageability:Auto SmartPort, Web Device Manager, Telnet, HTTPS access, and SNMP
Switch Performance and Scalability
- Line rate/nonblocking application-specific integrated circuit (ASIC)-based architecture
- Forwarding rate: 6.6Mpps with 64-byte frames
- Forwarding bandwidth: 4.4Gbps
- Egress buffer: 2MB
- Unicast MAC addresses: 8000
- IGMP multicast groups: 255
- Max VLANs: 255
- ?IPv4 MAC security ACEs: 384 (default TCAM template)
- Effectively reduces downtime with improved network performance
- Conveniently lets you connect two standard Ethernet ports to ensure maximum efficiency
- Expand your network capacity with the help of 10 networking ports and transfer your data quickly and easily
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Compact form factor for your convenience and simplicity of usage
- Management capability allows maximum efficiency and with unrestricted control
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Series
- 2020
- Product Type
- Ethernet Switch
- Features
- Dynamic ARP Inspection Broadcast Storm Control DHCP Snooping Remote Monitoring (RMON) DHCP Relay
- Total Number of Network Ports
- 10
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
- Port/Expansion Slot Details
- 8 x 10/100BASE-T Gigabit Ethernet RJ-45 Network Port 2 x 100/1000BASE-T Gigabit Ethernet RJ-45/SFP Combo Port 1 x RS-232 Serial Console Port
- Media Type Supported
- Twisted Pair Optical Fiber
