Cisco UCS Virtual Interface Card 1340
PCI Express 3.0 x16 - 2 Port(s) - 40GBase-X - Mezzanine
About This Product
Overview

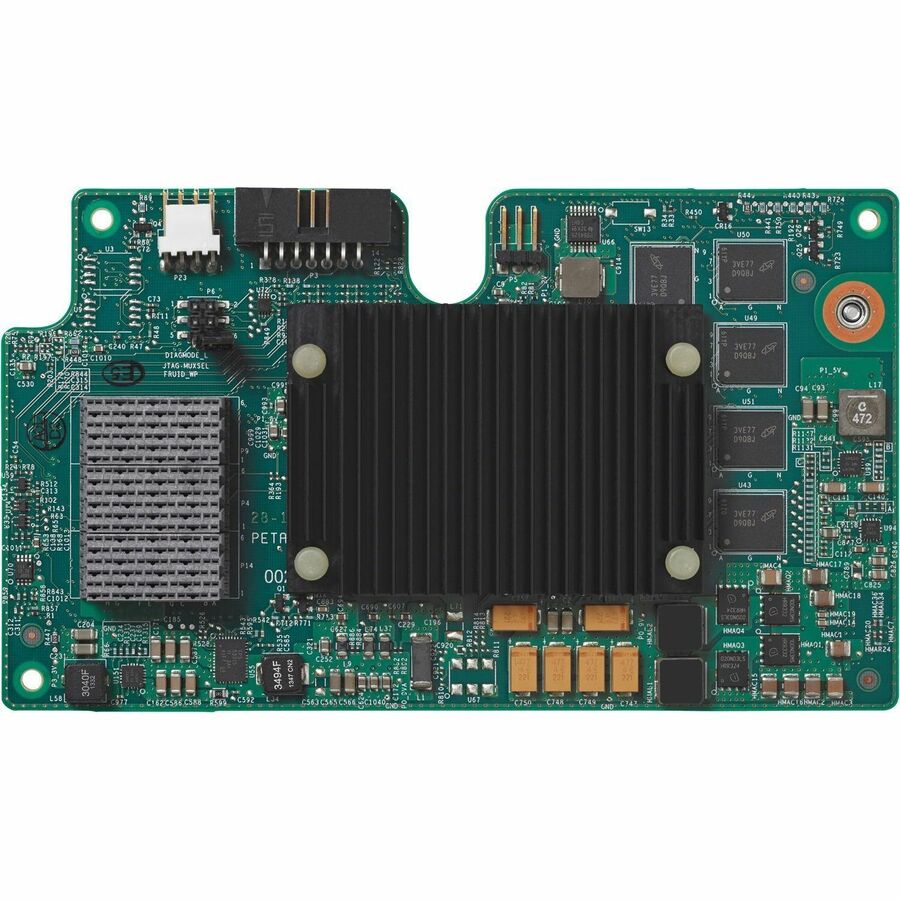

The Cisco UCS Virtual Interface Card (VIC) 1340 is a 2-port 40-Gbps Ethernet or dual 4 x 10-Gbps Ethernet, Fibre Channel over Ethernet (FCoE)-capable modular LAN on motherboard (mLOM) designed exclusively for the M4 generation of Cisco UCS B-Series Blade Servers. When used in combination with an optional port expander, the Cisco UCS VIC 1340 capabilities is enabled for two ports of 40-Gbps Ethernet.
The Cisco UCS VIC 1340 enables a policy-based, stateless, agile server infrastructure that can present over 256 PCIe standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1340 supports Cisco® Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment and management.
- 40Gigabit Ethernet card has an impressive performance that enables an affordable solution for trouble-free networking, clustering, or storage
- This 16000 MB/s bandwidth PCI Express 3.0 x16 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- This dual port 40gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
Quick Specifications
- Product Model
- 1340
- Product Type
- 40Gigabit Ethernet Card
- Host Interface
- PCI Express 3.0 x16
- Total Number of Ports
- 2
- Network Technology
- 40GBase-X
- Form Factor
- Mezzanine
- Width
- 3.7"
- Depth
- 7.2"
