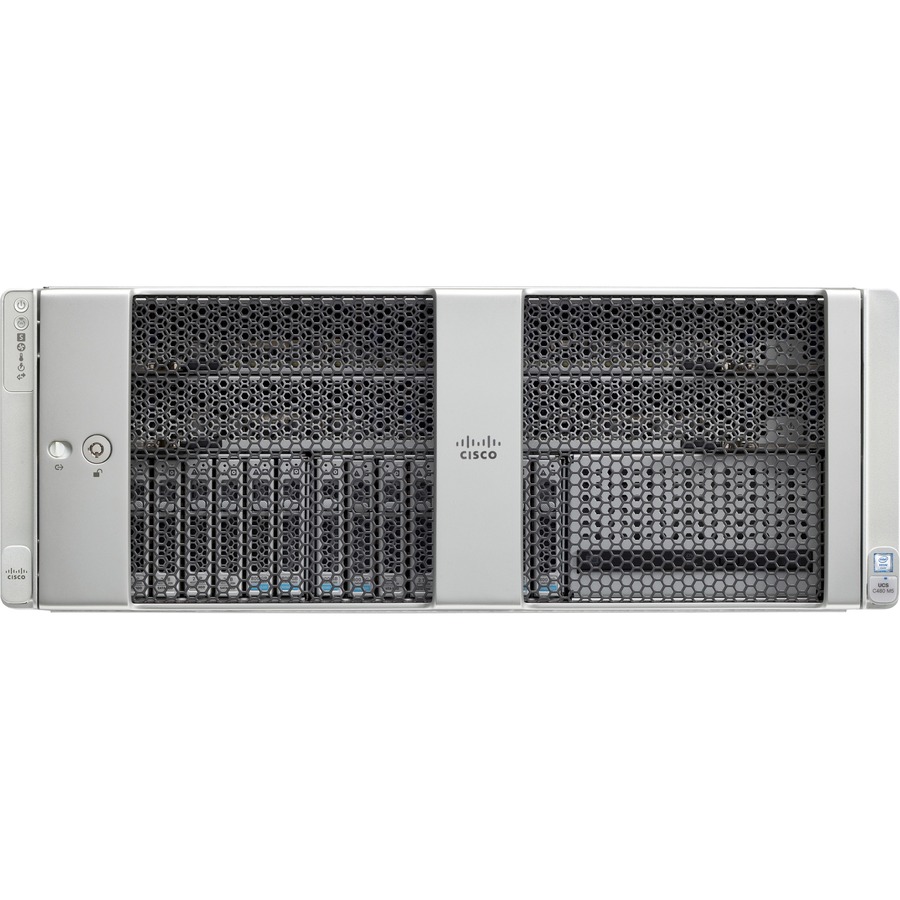

Cisco Barebone System - 4U Rack-mountable - 4 x Processor Support
Manufacturer: Cisco Systems, Inc
Mfr. Part: HX-C480-M5
Intel C620 Chip - 6 TB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 48 Total Memory Slots - Serial ATA, 12Gb/s SAS Controller 256 MB Graphic(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - 10 Gigabit Ethernet, Gigabit Ethernet - Intel Optane Memory Ready - 3 USB 3.0 Port(s) - 1600 W - 3 Year
About This Product
Overview
The Cisco UCS C480 M5 High-Performance Rack Server is a four-rack-unit (4RU) server supporting the Intel® Xeon® processor scalable family CPUs, with up to 6 terabytes (TB) of double-data-rate 4 (DDR4) memory1 in 48 slots, and up to 32 small form factor (SFF), hot-swappable2 SAS/SATA/PCIe NVMe disk drives.
12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
12 PCI Express (PCIe) expansion slots support Cisco UCS C-Series network adapters storage controllers, and up to 6 GPUs, with additional I/O provided by two 10GBase-T LOM ports and one 1GbE dedicated out-of-band (OOB) management port. A separate PCIe slot is reserved inside the chassis for a RAID controller card.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Perform computational tasks efficiently with Xeon Platinum processor for smooth and reliable performance
- With Serial ATA interface, experience high-speed data transfer and robust reliability for optimized system performance
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Provides 3 USB ports for responsive and expanded device connections without interruptions
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
Quick Specifications
- Product Series
- C480 M5
- Product Type
- Barebone System
- Number of Processors Supported
- 4
- Processor Supported
- Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
- 64-bit Processing
- Yes
- Chipset Manufacturer
- Intel
- Chipset Model
- C620
- Maximum Memory Supported
- 6 TB
