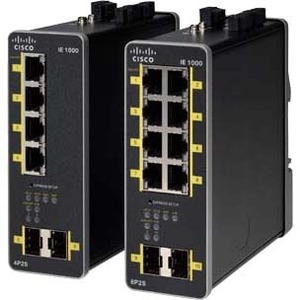

Cisco IE 1000-4P2S-LM Industrial Ethernet Switch
Manufacturer: Cisco Systems, Inc
Mfr. Part: IE-1000-4P2S-LM
4 Ports - Manageable - Gigabit Ethernet, Fast Ethernet - 1000Base-X, 10/100Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - Rail-mountable
About This Product
Overview
The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.
The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.
The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.
The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.
The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.
The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.
The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Allows connection between separate networks to support infrastructure flexibility and structured traffic distribution
- Set up a basic wired network using 4 networking ports to connect multiple compatible devices efficiently
- Built?in power supply supports internal components by providing required operating voltage
- Layer 2 switching supports defined functions including IGMP snooping, port mirroring, and spanning tree operation
- Rail?mountable design supports secure installation using rail?based mounting systems for stable physical placement
- Management capability enables control over network setup and configuration according to operational requirements
- Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Quick Specifications
- Product Series
- 1000
- Product Model
- IE-1000-4P2S-LM
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 4
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- No
- Port/Expansion Slot Details
- 4 x Fast Ethernet Network 2 x Gigabit Ethernet Uplink
