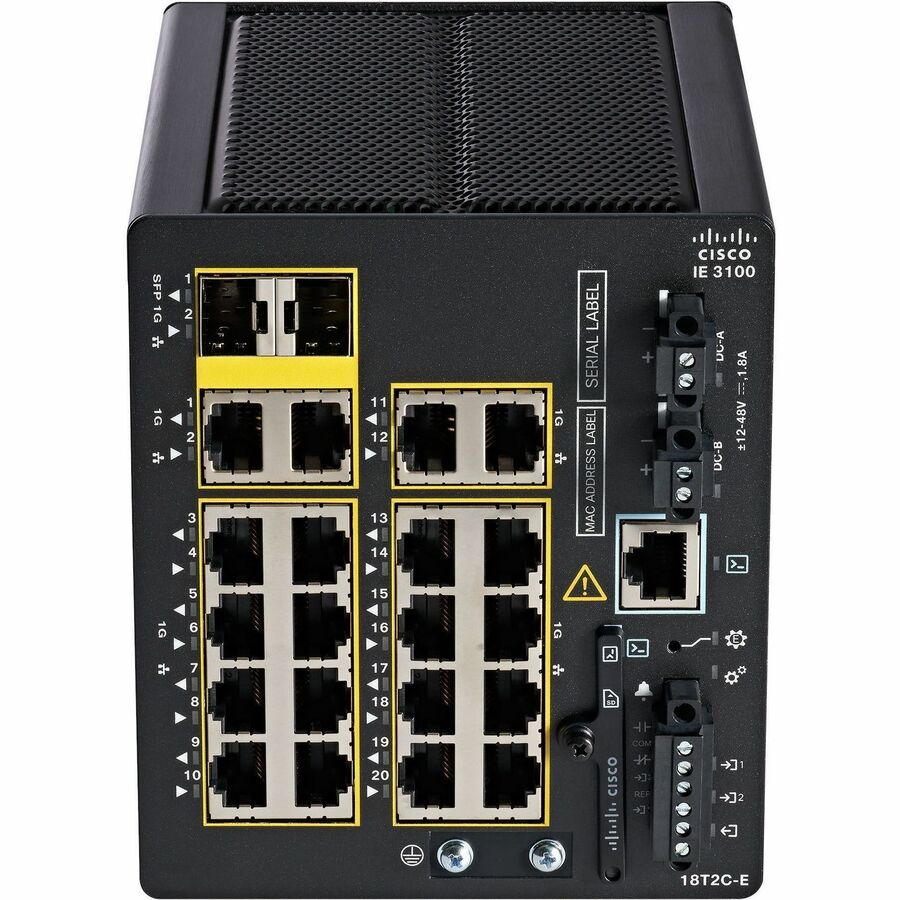

Cisco Catalyst IE3100 Rugged Layer 3 Switch
20 Ports - Manageable - Gigabit Ethernet - 1000Base-T - 3 Layer Supported - 36.70 W Power Consumption - 240 W PoE Budget - Twisted Pair - PoE Ports - Black - DIN Rail Mountable, Compact
About This Product
Overview
The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.
Product overview
Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrained deployments often found in distribution centers, warehouses, and outdoor spaces.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.
The IE3100 Rugged Series switches offer:
- Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
- Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
- Simplified software management with universal images
- Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
- Support for Layer-2 Network Address Translation
- Layer 3 Switch supports structured network connectivity for general data communication needs
- Cascade connections to other network devices through the uplink port to extend a local area network topology
- Features 20 networking ports to establish a local wired network or extend connectivity within an existing layout
- DC power source supports continued device operation during power availability challenges
- Layer 3 switching support enables structured traffic management without altering established network architecture
- DIN Rail Mountable form factor supports structural consistency based on defined hardware construction
- Management functionality enables centralized control to support efficient configuration and operational oversight
- Gigabit Ethernet supports higher uplink data rates compared to standard Ethernet server connections
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- Available in black color to allow visual alignment with surrounding equipment
Quick Specifications
- Product Line
- Catalyst
- Product Series
- IE3100 Rugged
- Packaged Quantity
- 1
- Product Type
- Layer 3 Switch
- Features
- Fanless
- Total Number of Network Ports
- 20
- Network (RJ-45)
- Yes
- Uplink Port
- Yes
