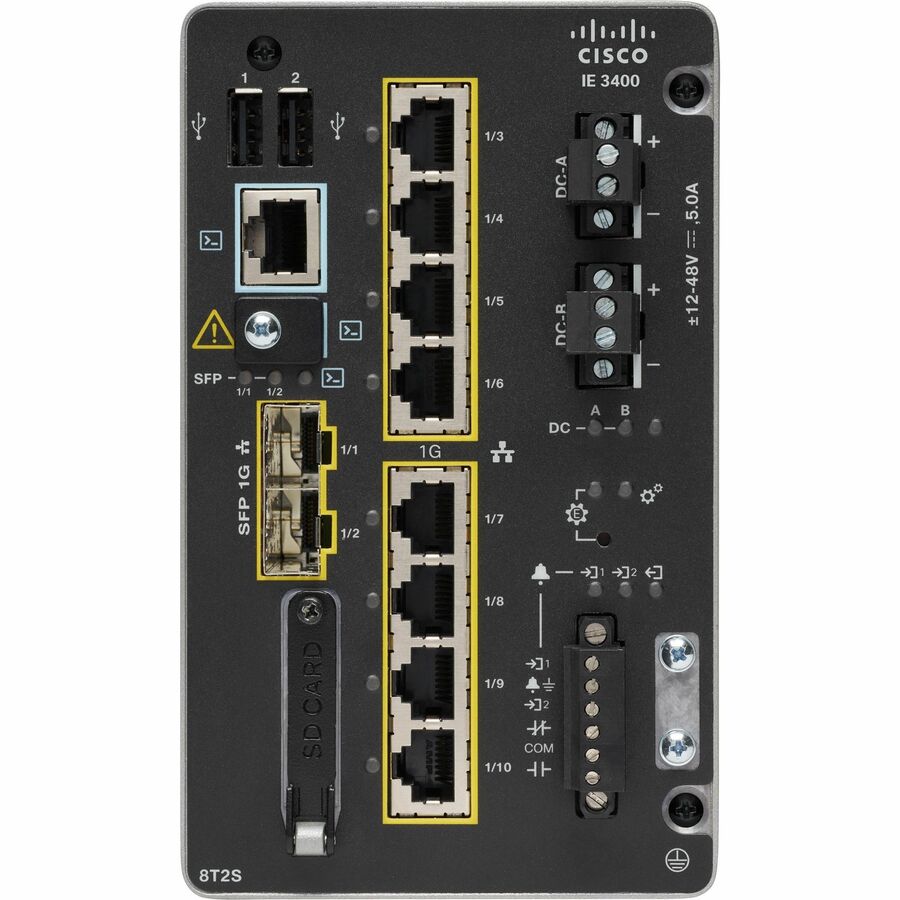

Cisco Catalyst IE-3400-8T2S Ethernet Switch
8 Ports - Gigabit Ethernet, 2.5 Gigabit Ethernet - 10/100/1000Base-T, 100/1000Base-X - 3 Layer Supported - Modular - 2 SFP Slots - 36 W Power Consumption - Twisted Pair, Optical Fiber - DIN Rail Mountable
About This Product
Overview
The Cisco Catalyst® IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form-factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.
Product overview
The Cisco Catalyst IE3400 Rugged Series switches deliver advanced, high-speed Gigabit Ethernet connectivity in a compact form factor, and are designed for a wide range of industrial applications where hardened products are required. The modular design of the Cisco Catalyst IE3400 Rugged Series offers the flexibility to expand up to 26 ports of Gigabit Ethernet with a range of expansion module options. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3400 platform is also ideal for extended enterprise deployments in outdoor spaces, warehouses, and distribution centers.
The IE3400 Series runs Cisco IOS® XE, a next-generation operating system with built-in security and trust, featuring secure boot, image signing, and the Cisco® Trust anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE3400 Rugged Series can be managed with powerful management tools such as Cisco DNA Center and Industrial Network Director, and can be easily set up with a completely redesigned, user-friendly, modern GUI tool called WebUI. The platform also supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Stealthwatch®.
The IE3400 series (with expansion module) supports power budget of up to 480W for PoE/PoE+, shared across 24 ports, and is ideal for connecting PoE-powered end devices such as IP cameras, phones, wireless access points, sensors, and more.
- Ethernet Switch supports network continuity by maintaining data transmission during operation
- Allows connection between standard Ethernet ports to support network extension without changing existing cabling
- Features 8 networking ports to establish a local wired network or extend connectivity within an existing layout
- DC power source provides required electrical input for normal device functionality
- Layer 3 support allows routing functionality that supports network scalability through structured traffic handling
- DIN Rail Mountable form factor supports product placement based on physical design requirements
- Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
Quick Specifications
- Product Line
- Catalyst
- Product Series
- IE3400
- Product Model
- IE-3400-8T2S
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 8
- Uplink Port
- Yes
- Modular
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet Network 2 x Gigabit Ethernet Expansion Slot
