Cisco Line Card
For Data Networking, Optical NetworkOptical FiberGigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet - 100Base-X, 10GBase-X, 25GBase-X, 40GBase-X, 100GBase-X - 48 x Expansion Slots - SFP/SFP+, SFP+, SFP28, QSFP28, QSFP+ - Plug-in Module
About This Product
Overview
Based on the Cisco Global Cloud Index, digitalization is projected to grow global data center and public/private cloud network traffic more than 25 percent annually, resulting in a threefold increase by 2019. To help network providers meet these challenges, the Cisco®Network Convergence System 5500 Series is built with features such as extremely high port densities, deep packet buffering, and forwarding hardware optimized for these types of deployments.
The Cisco NCS 5500 Series modular chassis provides a wide variety of line cards to address customer needs using flexible interfaces and port densities, along with full bandwidth utilization of the forwarding ASIC.

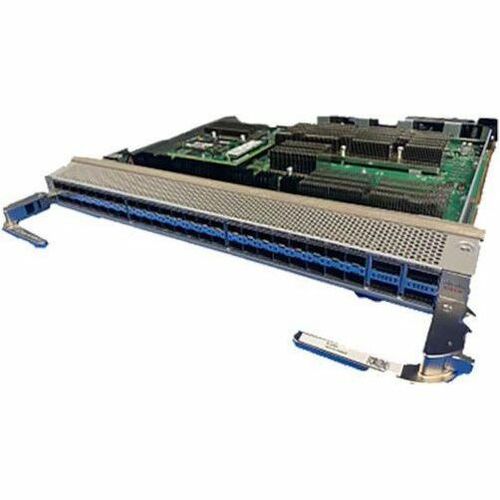

The Cisco NC55-32T16Q4H line card (Figure 1) provides a mix of 1/10G, 10/25G, and 40/100G to optimally support aggregation applications as needed for example in the mobile backhaul market.
- Delivers dependable routing protocol functionality with feasible data packets forwarding to allow optimal Line Card usability
- With 100Base-X technology, enjoy up to 100Mbps data transfer rate over supported network cable
- Gigabit Ethernet port for ultra-fast network speeds
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- Plug-in Module conveniently adds a specific feature to an existing computer program to ensure maximum productivity
- Line Card with data networking application/usage for reliability and maximum efficiency
Quick Specifications
- Product Type
- Line Card
- Application/Usage
- Data Networking Optical Network
- Media Type Supported
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet 10 Gigabit Ethernet 25 Gigabit Ethernet 40 Gigabit Ethernet 100 Gigabit Ethernet
- Network Technology
- 100Base-X 10GBase-X 25GBase-X 40GBase-X 100GBase-X
- Total Number of Expansion Slots
- 48
- Expansion Slot Type
- SFP/SFP+ SFP+ SFP28 QSFP28 QSFP+
- Expansion Slot Details
- 32 x 1000Base-X/10GBase-X SFP/SFP+ 16 x 10Gb Ethernet/25Gb Ethernet SFP+/SFP28 4 x 40Gb Ethernet/100Gb Ethernet QSFP28/QSFP+ X USB
