Cisco Network Patch Panel

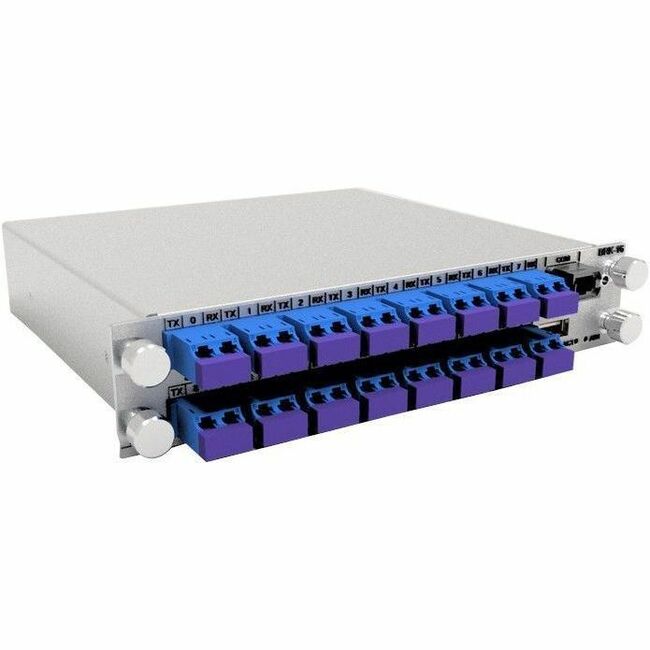

The NCS1K-BRK-16 module providesthe breakout of 16 fibersfrom an MPO-24 connector to 16 duplex LC connectors. The signals on each fiber from the MPO input ports are split over two LC output ports by a 1x2 optical splitter. The signals from the two adjacent input LC ports are combined into a single MPO output port through a 1x2 optical coupler. For each port (MPO and LC), power monitors with tone detection capability are available. A filtered optical loopback (191.175 THz) from one MPO input port (fiber-1) to all MPO output ports is available for connection verification
