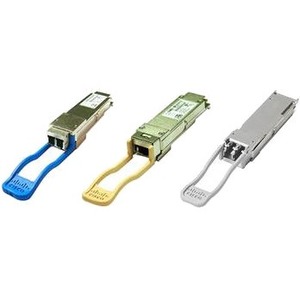

Cisco 4x10GBASE-LR QSFP Modules for SMF
For Optical Network, Data Networking - 1 x MPO/MTP 40GBase-LR Network - Optical Fiber - Single-mode - 40 Gigabit Ethernet - 40GBase-LR - Hot-swappable
About This Product
Overview
The Cisco QSFP-4X10G-LR-S QSFP module supports link lengths of up to 10km on G.652 single-mode fiber (SMF). It enables high-bandwidth 40G optical links over 12-fiber parallel fiber terminated with MPO/MTP multifiber female connectors. It can also be used in a 4x10G mode for interoperability with 10GBASE-LR interfaces up to 10km.
The 4x10G connectivity is achieved using an external 12-fiber parallel to 2-fiber duplex breakout cable, which connects the 4x10G LR module to four 10GBASE-LR optical interfaces. Cisco's QSFP-4X10G-LR-S is optimized to guarantee interoperability over the full specification range of 10GBASE-LR in 4x10G mode. QSFP-4X10G-LR-S does not support FCoE.
- QSFP offers enhanced dependability with maximum productivity
- With 40GBase-LR technology, enjoy up to 40Gbps data transfer rate over optical fiber cable
- 40 Gigabit Ethernet for efficient data transfer and fast connectivity
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- Hot-swappable form factor allows hassle-free and easy usage with increased efficiency
- QSFP with optical network application/usage for maximum productivity and usability
Quick Specifications
- Product Condition
- Refurbished
- Product Type
- QSFP
- Application/Usage
- Optical Network Data Networking
- Total Number of Ports
- 1
- Connector Type
- MPO/MTP
- Interfaces/Ports Details
- 1 x MPO/MTP 40GBase-LR Network
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Single-mode
