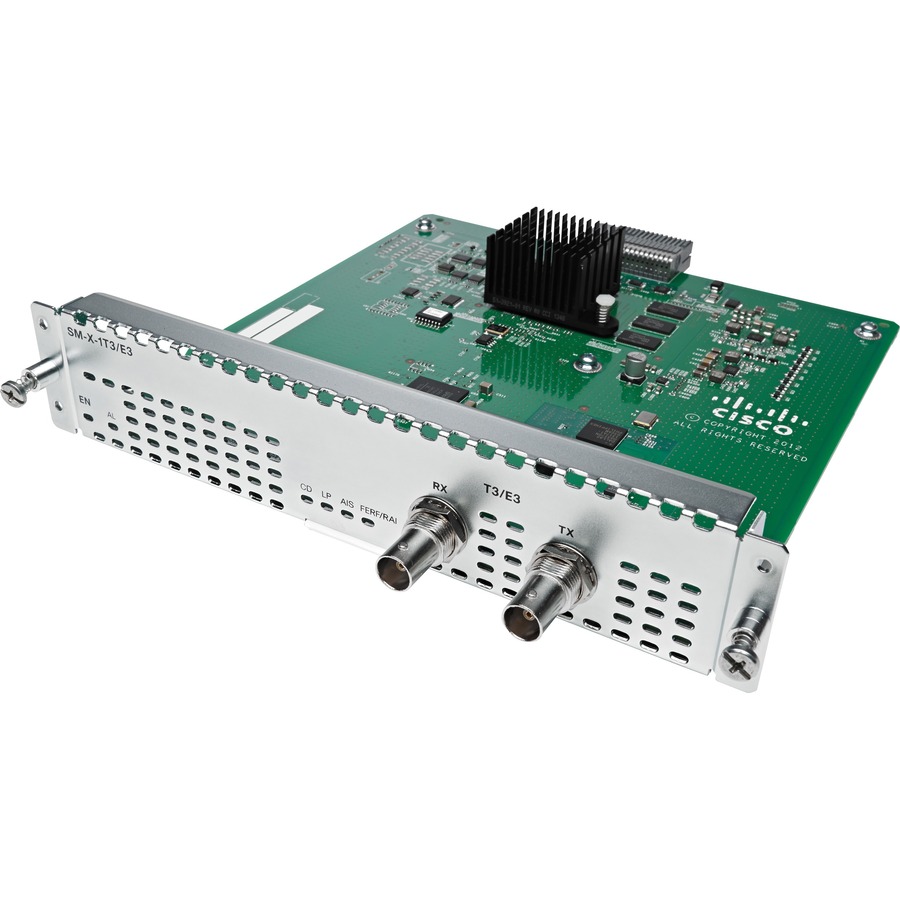

Cisco One-Port Clear-Channel T3/E3 Service Module
Manufacturer: Cisco Systems, Inc
Mfr. Part: SM-X-1T3/E3=
For Wide Area Network - 1 x BNC T3/E3 WAN
About This Product
Overview
The Cisco Packet-over-T3/E3 Service Module for the Cisco Integrated Services Routers offers the first software-configurable T3/E3 product from Cisco. This flexible T3/E3 module allows you to switch between T3 and E3 applications with a single Cisco IOS® Software command. This feature offers you increased flexibility and investment protection by allowing a Cisco partner, service provider, or enterprise customer to stock only a single product that can be deployed internationally.
- Single port-universal T3/E3 version
- Clear and subrate support in both T3 and E3 modes
- Online insertion and removal (OIR) support
- Onboard processing of Cisco Message Definition Language (MDL) and performance monitoring
- Support for scrambling and subrate can be independently or simultaneously enabled in each DSU mode
- Support for full T3 and E3 line rates
- Support for RFC1407-MIB
Quick Specifications
- Product Type
- Service Module
- Application/Usage
- Wide Area Network
- Total Number of Ports
- 1
- Connector Type
- BNC
- Interfaces/Ports Details
- 1 x BNC T3/E3 WAN
- Media Type Supported
- Coaxial
- Network Technology
- T3/E3
- Height
- 1.6"
