Cisco I8S Speaker System - 9 W RMS - White
86 Hz to 8 kHz
About This Product
Overview

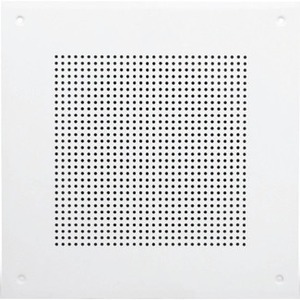

Model I8S from Atlas Sound consists of a factory assembled loudspeaker and baffle with PCB amplifier / control board securely mounted to the rear of the baffle via concealed weld studs. The amplifier / control board is capable of producing 9 Watts RMS into the 8Ω loudspeaker with 9VDC minimum power provided by IEEE 802.3af compliant POE switches. Local 12VDC - 18VDC PSUs may also be used instead of POE switches. Interconnection is via a board mounted female RJ-45 connector. The industry standard C10A loudspeaker used in the I8S is a dual cone 8" (205mm) loudspeaker with a 10oz (260g) ceramic magnet. The 18-gauge construction of the metal baffle provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat.
- IP Speakers From Atlas Sound Allow Users or System Administrators to Send Live, Prerecorded, or Ad Hoc Messages Along with Control Data to Speaker End Points Over New or Existing Multicast Enabled Local Area Networks.
- Highly Efficient 10oz Dual Cone Loudspeaker System Provides 94dB Average SPL @ 1W/1M and is Capable of 103dB @ 1 Meter Via the Rated Power of the Internal IP Addressable Amplifier
- 105 ? Dispersion in the 2kHz Octave Band (-6dB)
- Wide Frequency Response of 86Hz - 8kHz (±5dB) is Perfect for Speech and General Messaging Playback
Quick Specifications
- Product Model
- I8S
- Product Type
- Speaker System
- Minimum Frequency Response
- 86 Hz
- Maximum Frequency Response
- 8 kHz
- RMS Output Power
- 9 W
- Product Color
- White
- Height
- 11.5"
- Width
- 11.5"
