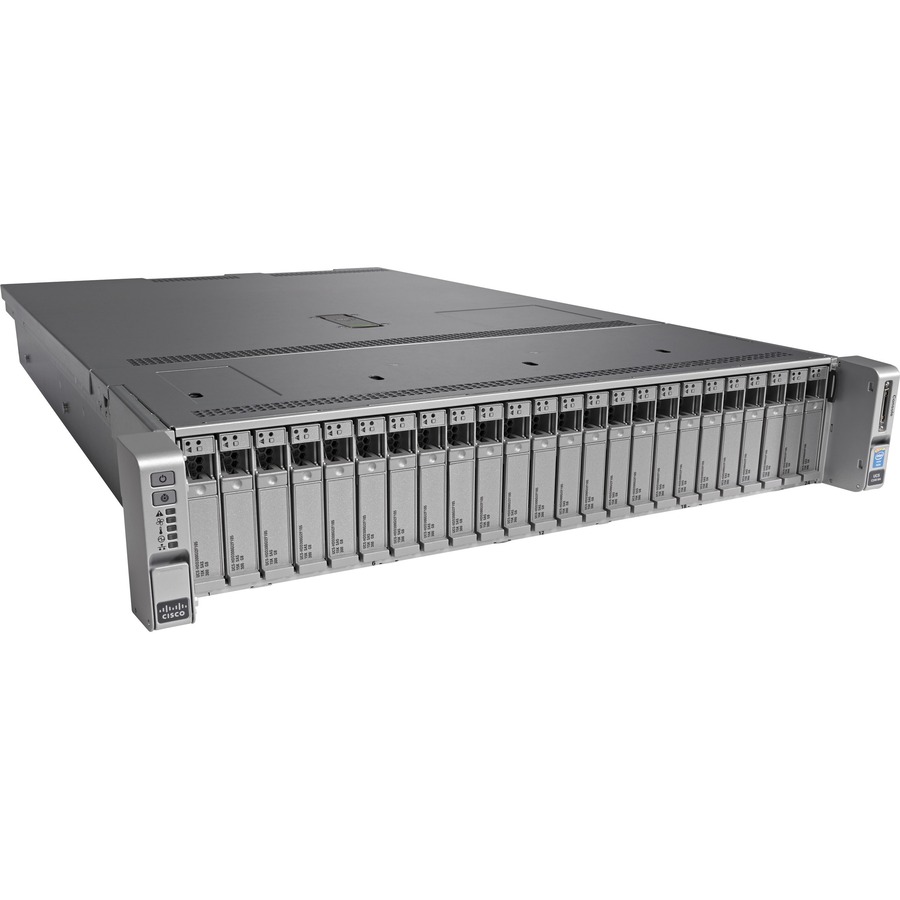

Cisco C240 M4 2U Rack Server - Xeon E5-2620 v3 2.40 GHz - 128 GB RAM - Serial ATA Controller
Intel C610 Chip - 2 Processor Support - DDR4 SDRAM - 0, 1, 5, 10 RAID Levels - Gigabit Ethernet
About This Product
Overview
Delivering Outstanding Performance and Expandability
The Cisco UCS® C240 M4 Rack Server is our newest 2-socket, 2-rack-unit (2RU) rack server (Figure 1.) It offers outstanding performance and expandability for a wide range of storage and I/O-intensive infrastructure workloads, from big data to collaboration. The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) portfolio in a 2RU form factor with the addition of the Intel® Xeon® processor E5-2600 v3 product family, which delivers a superb combination of performance, flexibility, and efficiency.
Product Overview
The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco UCS portfolio in a 2RU form factor. Based on the Intel® Xeon® processor E5-2600 v3 series, it delivers an outstanding combination of performance, flexibility, and efficiency. In addition, the Cisco UCS C240 M4 offers outstanding levels of internal memory and storage expandability with exceptional performance. It delivers:
? Up to 24 DDR4 DIMMs for improved performance and lower power consumption
? Up to 6 PCI Express (PCIe) 3.0 slots (4 full-height, full-length)
? Up to 24 small form factor (SFF) drives or 12 large form factor (LFF) drives, plus two (optional) internal SATA boot drives
? Support for 12-Gbps SAS drives
? A modular LAN-on-motherboard (mLOM) slot for installing a next-generation Cisco virtual interface card (VIC) or third-party network interface card (NIC) without consuming a PCIe slot
? 2 x 1 Gigabit Ethernet embedded LOM ports
? Supports up to two double-wide NVIDIA graphics processing units (GPUs), providing a graphics-rich experience to more virtual users
? Excellent reliability, availability, and serviceability (RAS) features with tool-free CPU insertion, easy-to-use latching lid, hot-swappable and hot-pluggable components, and redundant Cisco® Flexible Flash (FlexFlash) SD cards.
- 2 processors supported for optimal performance and maximum reliability in mission-critical server environments
- With 128 GB memory, run as many programs as needed without losing performance, ensuring fast and reliable multitasking
- Intel Xeon 2.40 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
- Rack form factor simplifies usage and setup, offering a user-friendly design for convenient server integration
- RAID provides redundancy to safeguard data during drive failures, ensuring maximum dependability and uninterrupted operations
- The DDR4 SDRAM memory technology ensures smooth data transfer between components, delivering consistent and reliable performance
- Gigabit Ethernet enables high-capacity data transfer, improving overall performance for virtualization and data-intensive applications
- 5 USB ports feature a refined design and safer connectivity, ensuring reliable, secure, and easy device connections every time
- Hexa-core (6 Core) processor core helps server process data quickly and reliably for maximum productivity
- 15 MB cache memory optimizes processing speed by reducing latency, maintaining peak efficiency for mission-critical systems
Quick Specifications
- Product Series
- C240 M4
- Product Type
- Server
- Number of Processors Supported
- 2
- Processor Type
- Xeon
- Processor Model
- E5-2620 v3
- Processor Core
- Hexa-core (6 Core)
- Processor Speed
- 2.40 GHz
- Cache
- 15 MB
