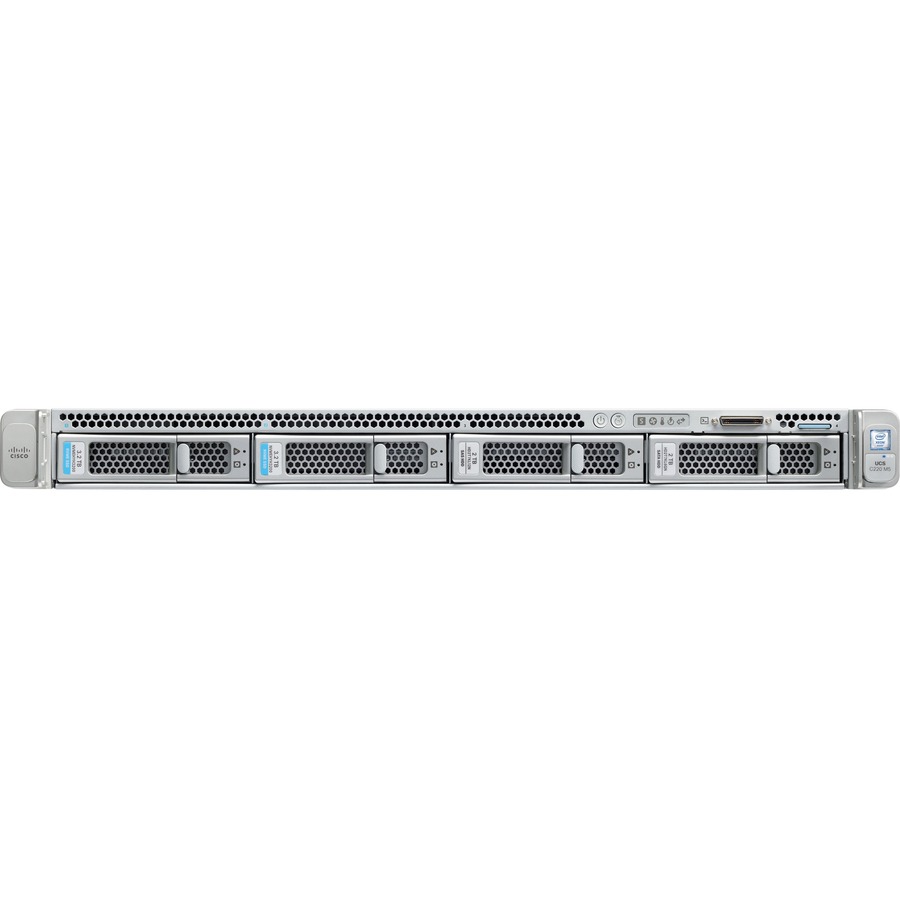

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support
Manufacturer: Cisco Systems, Inc
Mfr. Part: UCSC-C220-M5L
Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller 16 MB Graphic(s) - 4 3.5" Bay(s) - Processor Support (Xeon) - 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB 3.0 Port(s)
About This Product
Overview
The UCS C220 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, up to four SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs), and one dedicated internal slot for a 12G SAS storage controller card.
The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The C220 M5 LFF server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 10 Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Featuring 2 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- DDR4 SDRAM slot supports high-speed operation with low power use, delivering optimal performance and thermal efficiency
Quick Specifications
- Product Series
- C220 M5
- Product Type
- Barebone System
- Number of Processors Supported
- 2
- Processor Supported
- Xeon
- 64-bit Processing
- Yes
- Chipset Manufacturer
- Intel
- Chipset Model
- C620
- Maximum Memory Supported
- 3 TB
