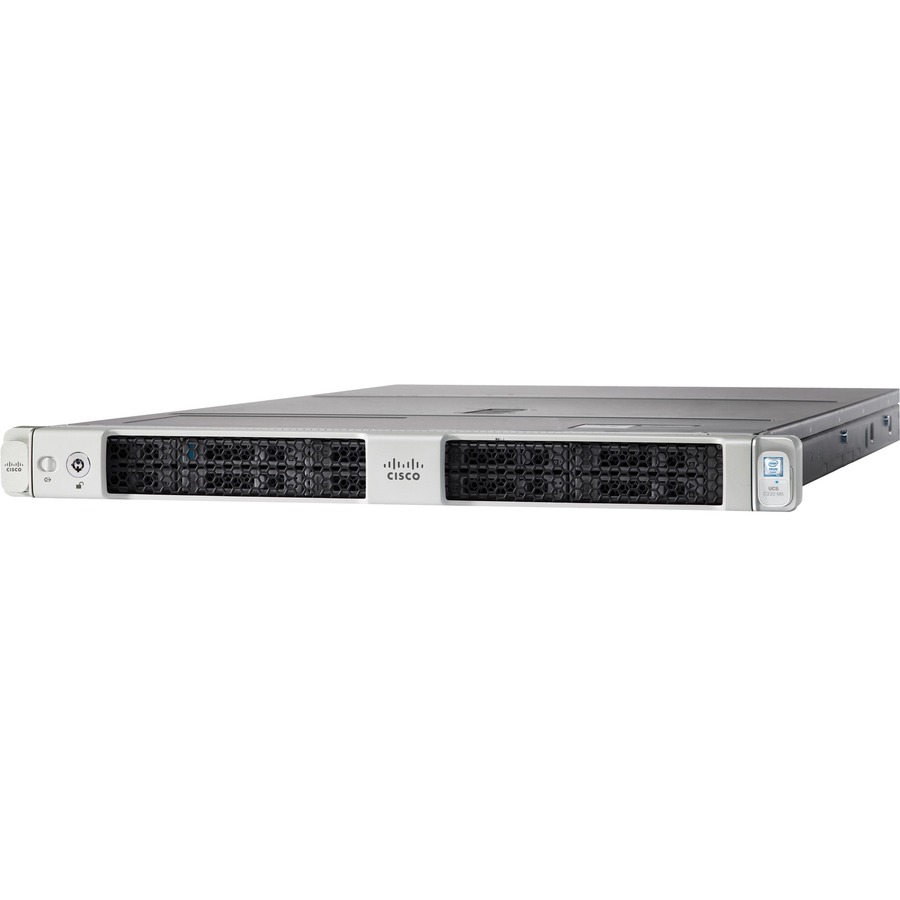

Cisco Barebone System - 1U Rack-mountable - 2 x Processor Support
Manufacturer: Cisco Systems, Inc
Mfr. Part: UCSC-C220-M5SN
Intel C620 Chip - 3 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS RAID Supported Controller 8 MB Graphic(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - 10 Gigabit Ethernet, Gigabit Ethernet - Intel Optane Memory Ready - 2 USB 3.0 Port(s)
About This Product
Overview
The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Scalable Processors. With this combination and the new 512GB Intel® OptaneTM DC Persistent Memory (DCPMM - Data Center Persistent Memory Module), up to 9TB of memory is possible (12x256GB DDR4 DIMMs1 and 12x512GB DCPMMs)
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Scalable Processors. With this combination and the new 512GB Intel® OptaneTM DC Persistent Memory (DCPMM - Data Center Persistent Memory Module), up to 9TB of memory is possible (12x256GB DDR4 DIMMs1 and 12x512GB DCPMMs)
The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.
The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Compatible Xeon Platinum processor enables fast and efficient execution of computational tasks
- 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems
- Rack-mountable barebone system maximizes space utilization while providing easy access to essential components
- Featuring 2 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
Quick Specifications
- Product Series
- C220 M5
- Product Type
- Barebone System
- Number of Processors Supported
- 2
- Processor Supported
- Xeon Platinum Xeon Gold Xeon Silver Xeon Bronze
- 64-bit Processing
- Yes
- Chipset Manufacturer
- Intel
- Chipset Model
- C620
- Maximum Memory Supported
- 3 TB
