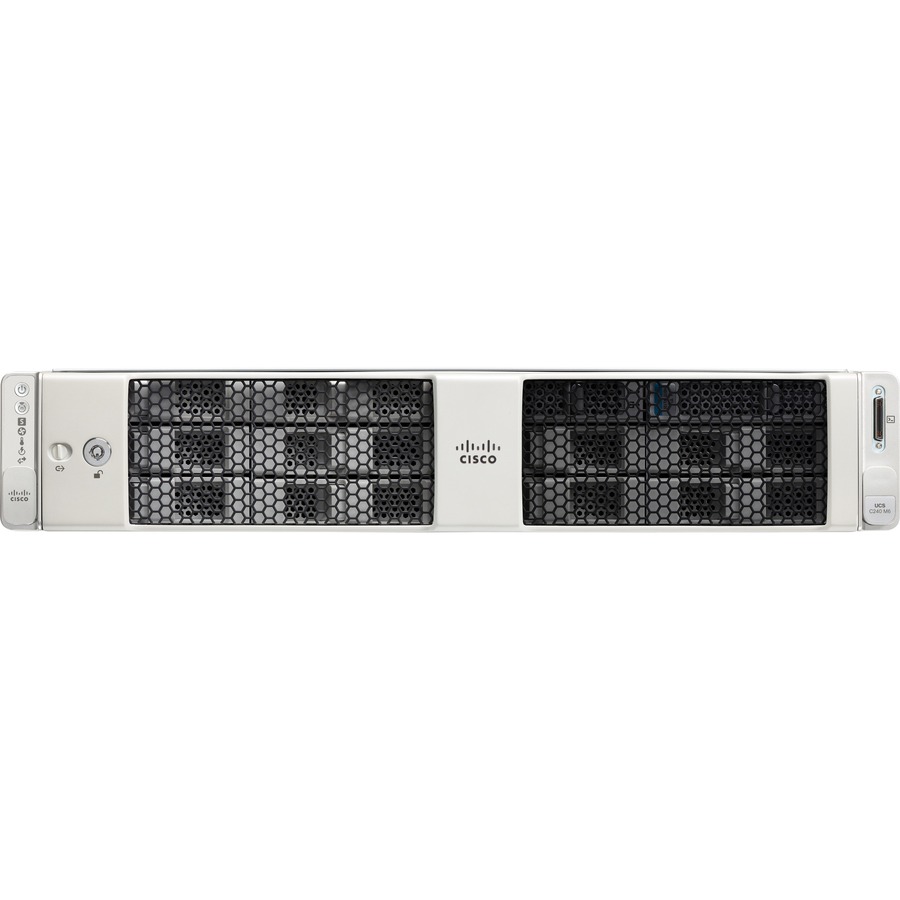

Cisco Barebone System - 2U Rack-mountable - 2 x Processor Support
Manufacturer: Cisco Systems, Inc
Mfr. Part: UCSC-C240-M6L
Intel C621A Chip - 8 TB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 32 Total Memory Slots - 12Gb/s SAS RAID Supported Controller 8 MB Graphic(s) - 12 3.5" Bay(s) - Processor Support (Xeon Bronze, Xeon Silver, Xeon Gold, Xeon Platinum) - 10 Gigabit Ethernet, Gigabit Ethernet - Intel Optane Memory Ready - 2 USB 3.0 Port(s) - 3 Year
About This Product
Overview
The UCS C240 M6 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with per DIMM capacity points up to 256 GB. Up to 8 TB total memory (for 2 CPUs) is available if the memory slots are populated with 32 x 256 GB DDR4 DIMMs1 or 16 x 256 GB DDR4 DIMMs and 16 x 256 GB Intel® Optane™ Persistent Memory Modules (PMem).
The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe).
The server is equipped with two rear storage risers (2 drive slots each) and one rear PCIe riser (3 PCIe slots). The server also provides a riser slot for a 12G SAS RAID controller with SuperCap for write cache backup, or for a SAS HBA. The chassis is equipped with six fans and two power supplies.
The C240 M6 LFF server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M6 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe).
The server is equipped with two rear storage risers (2 drive slots each) and one rear PCIe riser (3 PCIe slots). The server also provides a riser slot for a 12G SAS RAID controller with SuperCap for write cache backup, or for a SAS HBA. The chassis is equipped with six fans and two power supplies.
The C240 M6 LFF server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M6 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Upgrade an existing PC easily to improve performance and extend its usability for modern applications
- Perform computational tasks efficiently with Xeon Bronze processor for smooth and reliable performance
- 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems
- Rack-mountable barebone system ensures clutter-free, organized setups with improved accessibility and efficiency
- Connect USB-enabled devices via 2 USB ports for seamless data sharing and reliable performance
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- DDR4 SDRAM slot synchronizes signals for efficient data throughput, ensuring fast and reliable system performance
Quick Specifications
- Product Series
- C240 M6
- Product Type
- Barebone System
- Number of Processors Supported
- 2
- Processor Supported
- Xeon Bronze Xeon Silver Xeon Gold Xeon Platinum
- 64-bit Processing
- Yes
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A
- Maximum Memory Supported
- 8 TB
