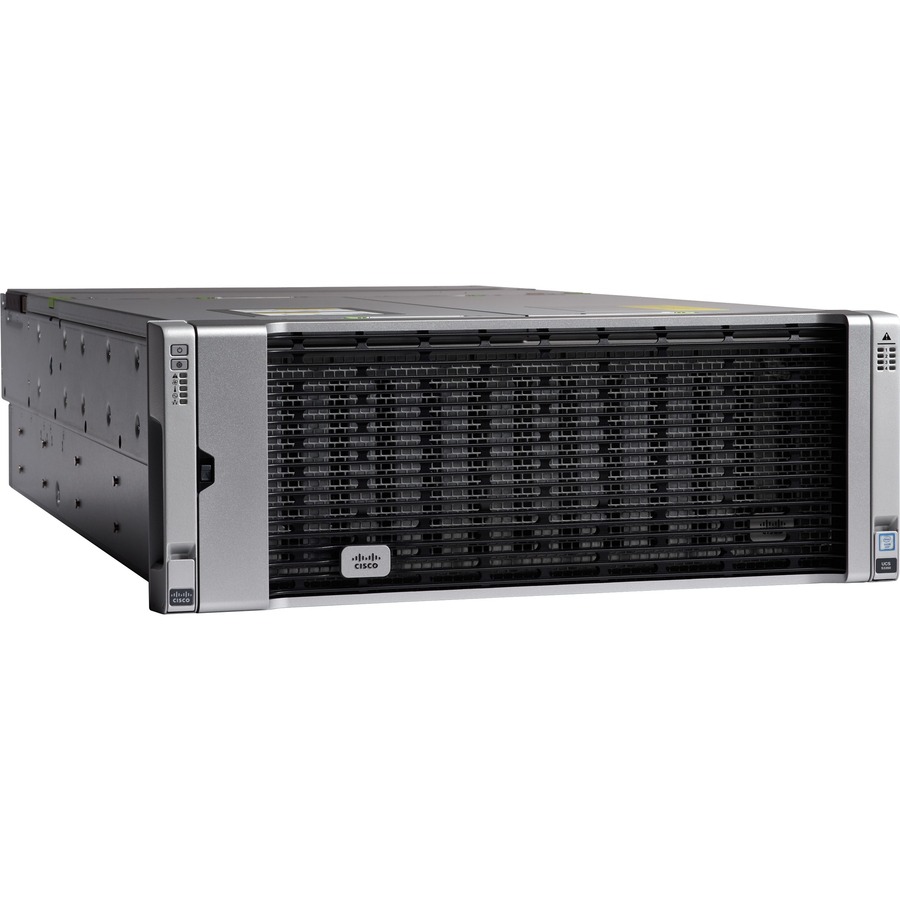

Cisco SmartPlay Select S3260 Basic
2 Nodes - 2 x Intel Xeon E5-2680 v4 Tetradeca-core (14 Core) 2.40 GHz - 60 x HDD Supported - 24 x HDD Installed - 144 TB Installed HDD Capacity - 2 Boot Drive(s) - 256 GB RAM DDR4 SDRAM - 1 x 12Gb/s SAS Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 60 x Total Bays - 60 x 3.5" Bay - 2 x Total Slot(s) - 40 Gigabit Ethernet - 1 USB Port(s) - 1 USB 2.0 Port(s) - Network (RJ-45) - 4U - Rack-mountable
About This Product
Overview
The Cisco UCS S3260 Storage Server is a modular, storage server with dual M4 or M5 server nodes, optimized for large datasets used in environments such as big data, cloud, object storage, video surveillance, and content delivery.
UCS S3260 server helps you achieve the highest levels of data availability and performance. With dual-node capability that is based on the 2nd Gen Intel® Xeon® Scalable and Intel® Xeon® Scalable processor, it features up to 840 TB of local storage in a compact 4-Rack-Unit (4RU) form factor. The drives can be configured with enterprise-class Redundant Array of Independent Disks (RAID) redundancy or with a pass-through Host Bus Adapter (HBA) controller. Network connectivity is provided with dual-port 40-Gbps nodes in each server, with expanded unified I/O capabilities for data migration between Network-Attached Storage (NAS) and SAN environments. This storage-optimized server comfortably fits in a standard 32-inch-depth rack, such as the Cisco® R 42610 Rack.
- NAS Storage System is the single answer to all your desired storage needs
- Holds up to 60 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 2.40 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable nas storage system allows a clutter-free, convenient usage with increased efficiency
- 40 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
Quick Specifications
- Product Series
- S3260 M4
- Product Type
- NAS Storage System
- Number of Hard Drives Supported
- 60
- Number of Hard Drives Installed
- 24
- Total Hard Drive Capacity Installed
- 144 TB
- Number of Boot Drives
- 2
- Number of Nodes
- 2
- Number of Processors Installed
- 2
