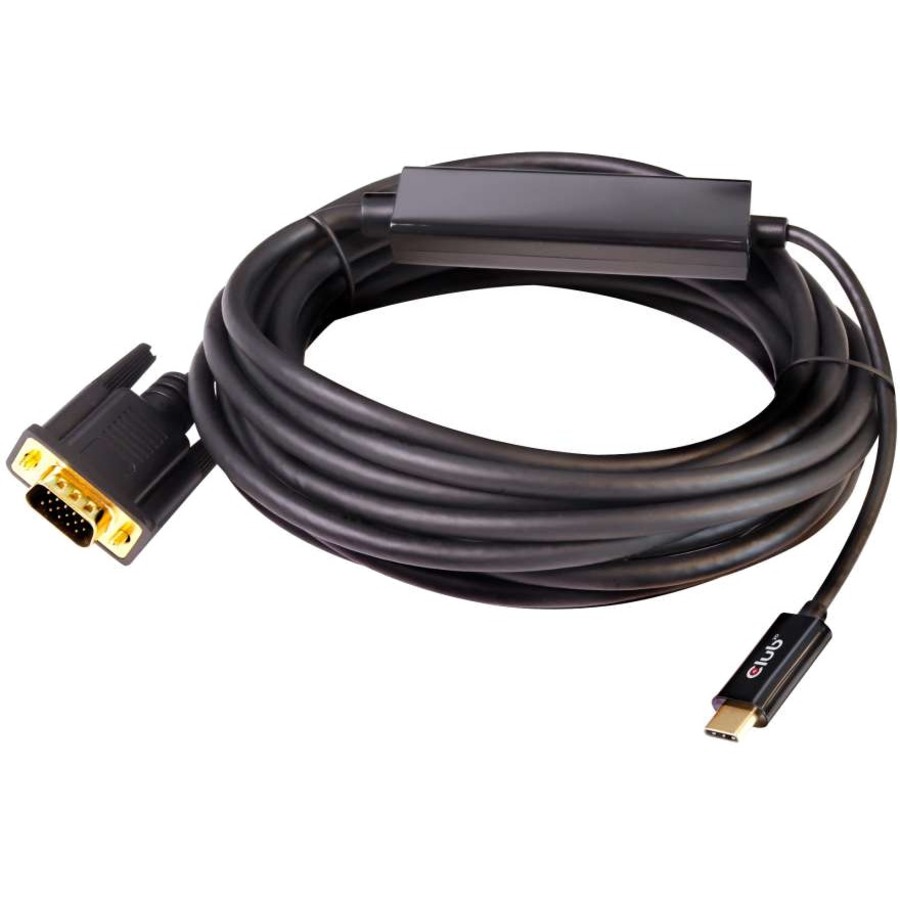

Club 3D USB Type C to VGA Active Cable M/M 5m/16.40ft
16.40 ft USB/VGA AV/Data Transfer Cable for Tablet, Projector, Chromebook, MacBook, Video Device, Monitor, MacBook Pro, Computer - First End: 1 x USB Type C - Male - Second End: 1 x 15-pin DB-15 - Male - 2.7 Gbit/s - Supports up to 1920 x 1200
About This Product
Overview
CAC-1512 - The Club 3D CAC-1512 enables the connection of your USB C Supported Computer to a VGA Supported monitor or projector. This is an all in One Solution Cable and Adapter with the reversible USB C connector. Its necessary for the computer to support DisplayPort Alt mode from the USB C connector.
It allows Widescreen Ultra Extended Graphics Array (WUXGA) at a 16x10 aspect ration with a display resolution of 1920x1200 pixels which makes it a great solution for home, office or other work environments.
This USB C to VGA cable works with USB C Devices such as Macbook, Macbook Pro, Chromebook, Dell XPS, Asus Tablet, and Razer.
- Supports DP1.1 Specifications
- Supports MainLink 1Lane HBR (High Bit Rate)at 2.7Gbit/s per lane and 2 lanes at RBR (Reduced Bit Rate) 1.62Gbit/s per lane
- This cable is USB powered and consumes approximately 200mW of power for video streaming in WUXGA
- Supports Analog RGB Current source outputs
- Supports 3.3V VSYNC and HSYNC outputs
- Pixel Clock up to 240Mhz
- Triple 8 Bit Digital to Analog Converter (DAC)
- Supports 6, 8 Bits per color
- Supports RGB formats
Quick Specifications
- Product Type
- AV/Data Transfer Cable
- Cable Type
- USB/VGA
- Cable Length
- 16.40 ft
- Connector Type on First End
- USB Type C - Male
- Connector on First End Details
- 1 x USB Type C - Male
- Connector Type on Second End
- DB-15 - Male
- Connector on Second End Details
- 1 x 15-pin DB-15 - Male
- Device Supported
- Tablet Projector Chromebook MacBook Video Device Monitor MacBook Pro Computer
