Club 3D A/V Adapter
1 x HDMI Digital Audio/Video - Female, 1 x USB Type-C - Female - 1 x USB Gen2 Type C Male - 7680 x 4320 Supported
About This Product
Overview

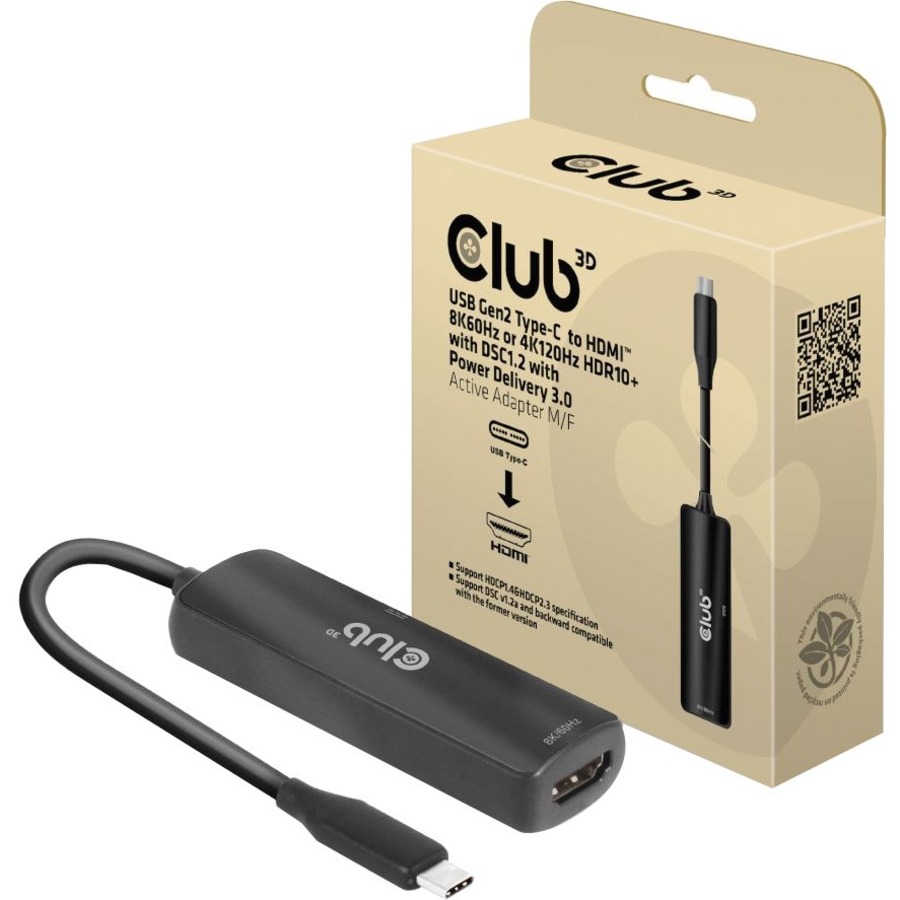

The Club 3D CAC-1588 is a USB Type-C to HDMI™(8K60Hz or 4K120Hz) Adapter with PD Charging. The HDMI™ port allows you to connect a HDMI™ monitor so that you can watch videos on a big screen and the USB-Type-C PD port support PD3.0 with max 100W PD Charging. It can work on all USB Type-C and Thunderbolt™ host that supports DP1.4 Alt mode.
With its DP1.4 Alt Mode DSC video compression technology, this adapter is able to convert DP1.4 Alt Mode video signals to HDMI™, supporting video display resolutions up to 8K60Hz (7680 x 4320)** and creating life like colors and movements with HDR10+ giving users the ultimate visual experience. The Adapter is bus powered so NO External power needed !
- Compliant with VESA DisplayPort™ v1.4 Specification
- Compliant with HDMI™ max. 8K60Hz or 4K120Hz Specification
- Support HDCP1.4&HDCP2.3 specification
- Support DSC v1.2a and backward compatible with the former version
- Support Max. resolution/refresh rates up to 8K/60Hz or 4k120Hz
- Support Dynamic HDR10+
- Support 8/10/12 bit color depth output
- Support pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Support max. 100Watt PD charging
- Support PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging out PD Adapter
Quick Specifications
- Product Type
- A/V Adapter
- Adapter Type
- HDMI/USB-C
- Connector Type on First End
- HDMI Digital Audio/Video - Female USB Type C - Female
- Connector on First End Details
- 1 x HDMI Digital Audio/Video - Female 1 x USB Type-C - Female
- Connector Type on Second End
- USB Type C - Male
- Connector on Second End Details
- 1 x USB Gen2 Type C Male
- Maximum Resolution Supported
- 7680 x 4320
- Features
- HDCP 1.4 HDCP 2.3 Display Stream Compression (DSC) 1.2a HDR10+ Display Stream Compression (DSC) 1.2 USB- Power Delivery (USB PD) Active
