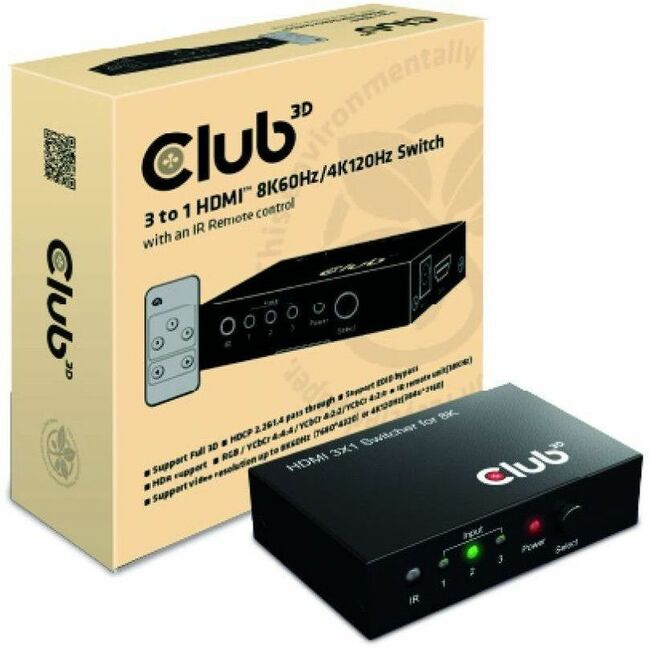

Club 3D 3 to 1 HDMI 8K60Hz/4K120Hz Switch
7680 x 4320 - 3 x 3 - Notebook, Computer - 1 x HDMI Out - 60 Hz
About This Product
Overview
The Club 3D CSV-1381 is a 3 to 1 HDMI™ spec. Switch that routes your high-definition video and digital audio from any one of the HDMI™ inputs to an 8K60Hz/4K120Hz HDMI™ output. The easiest way of connecting your High-Resolution game consoles and/or your PC/Laptop to 1 High-Resolution HDMI™ display up to 8K60Hz or 4K120Hz. All inputs are capable to accommodate up to 8K60Hz/4K120Hz high-definition video sources simultaneously. The output sends the high-definition audio/video signals to a high definition(8K60Hz) HDMI™ spec. Display. Switching inputs can be done by key pressing, on the unit itself, or with an IR remote unit for easy switching. This is a high-performance and small-sized HDMI™ 8K Switcher in a metal housing with an external Power Supply of 100-240VAC / 5V-1A DC. It's an ideal assistant both at home and at work.
- Support video resolution up to 8K60Hz(7680*4320) or 4K120Hz(3840*2160)
- Support Full 3D
- HDCP 2.2&1.4 pass through
- Support EDID bypass
- HDR support
- RGB / YCbCr 4:4:4 /YCbCr 4:2:2/YCbCr 4:2:0
- IR remote unit(38KHz)
- Each Input- and Output- cable length is max. 2m/6.56ft
Quick Specifications
- Product Type
- Audio/Video Switchbox
- Connectivity Technology
- Cable
- Number of Input Devices Supported
- 3
- Device Supported
- Notebook Computer
- Number of Displays Supported
- 3
- Maximum Video Resolution
- 7680 x 4320
- HDMI In
- Yes
- HDMI Out
- Yes
