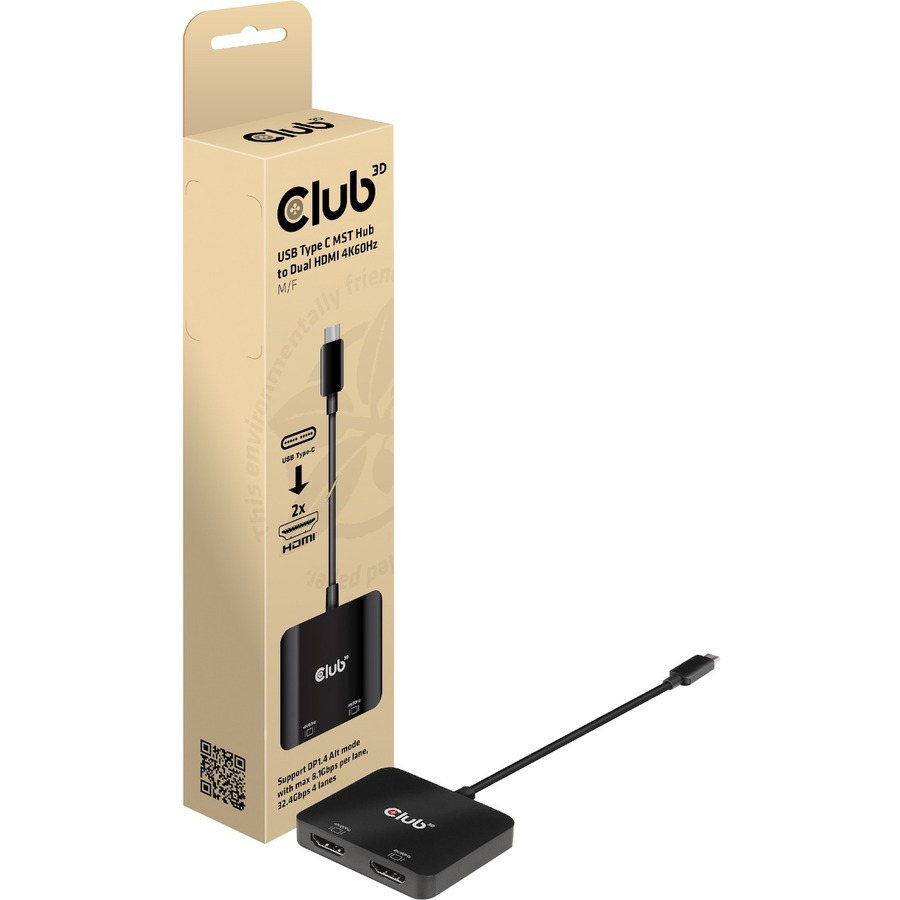

Club 3D USB Type C MST Hub to Dual HDMI 4K60Hz M/F
Manufacturer: Club 3D
Mfr. Part: CSV-1556
2 x HDMI Out - USB
About This Product
Overview
The Club 3D CSV-1556 is a Type-C MST Hub that works from any DP1.4 Alternate mode device to two HDMI™ 4K60Hz displays. It allows to extend a type-C port of the host to 2 HDMI displays with ultra high definition max 4K/60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. It can work on all DP Alt mode supported Type-C/Thunderbolt PC.
- ?Support Type-C input, 2 HDMI™ 4K60Hz outputs
- ?Support DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
- Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
- Note: to achieve dual max 4K/60Hz, the host should support DP1.4 Alt mode, when working on DP1.2 host, dual max 4K/30Hz due to bandwidth limitation.
- Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System
- Support 8/10/12 bit color depth output
- Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0
- Support HDCP2.2&1.4
Quick Specifications
- Product Model
- CSV-1556
- Product Type
- Signal Splitter
- HDMI Out
- Yes
- USB
- Yes
- Number of HDMI Outputs
- 2
- Weight (Approximate)
- 1.48 oz
- Environmentally Friendly
- Yes
