Club 3D CSV-1596 Docking Station
for Headset, Monitor, Notebook, Smartphone, Mouse, Flash Drive, Keyboard - 100 W Power Supply - USB Type C - 8K, 4K - 7680 x 4320, 3840 x 2160 - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Thunderbolt - Wired - Gigabit Ethernet - ChromeOS, Windows, macOS
About This Product
Overview

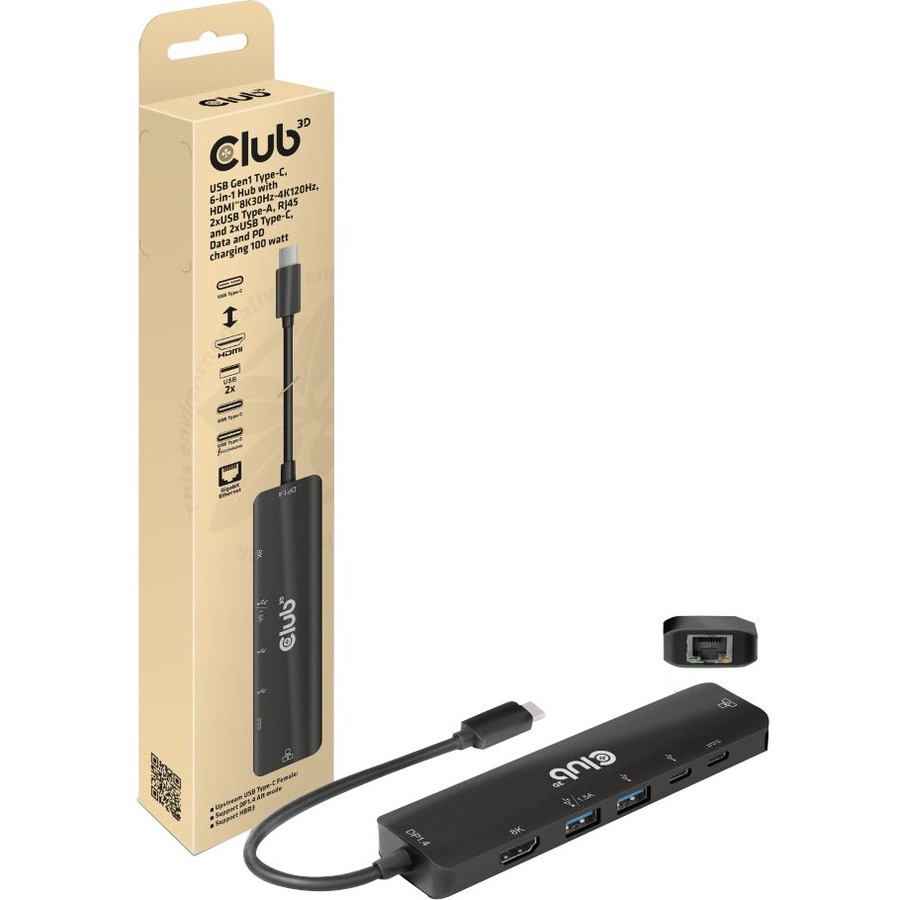

The Club 3D CSV-1596 is a USB Gen1 Type-C, 6-in-1 Hub with HDMI™8K30Hz-4K120Hz, 2xUSB Type-A, RJ45 and 2xUSB Type-C, Data and PD charging 100 watt, providing an ideal solution for extending the port of Type-C/Thunderbolt host (PC/Laptop/Mobile phone,etc.), especially for those host with a single Type-C port. This hub adopts the latest DP1.4 Alt mode supported IC, enabling to output HDMI™ video with max. 8K30Hz-4K120Hz and at the meanwhile transfer USB 3.1 data with max 5Gbps. The USB Type-A and Type-C data ports allow you to connect 4 USB devices simultaneously. 1 Gigabit Ethernet for super fast Ethernet. Besides, the Type-C female supports PD 3.0 PD Charging 100W (15W is dedicated to the functioning of this product, the rest power(max 85W) will be passed to charge for the host. This 6-in-1 Hub will work on all DP Alt mode supported Type-C hosts.
- Wired connectivity technology provides a high-powered and dependable connection
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Headset device supported for your convenience and better usability
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
Quick Specifications
- Product Model
- CSV-1596
- Product Type
- Docking Station
- Connectivity Technology
- Wired
- Supported Resolutions
- 7680 x 4320 3840 x 2160
- Screen Mode Supported
- 8K 4K
- Device Supported
- Headset Monitor Notebook Smartphone Mouse Flash Drive Keyboard
- Ethernet Technology
- Gigabit Ethernet
- Host Interface
- USB Type C
