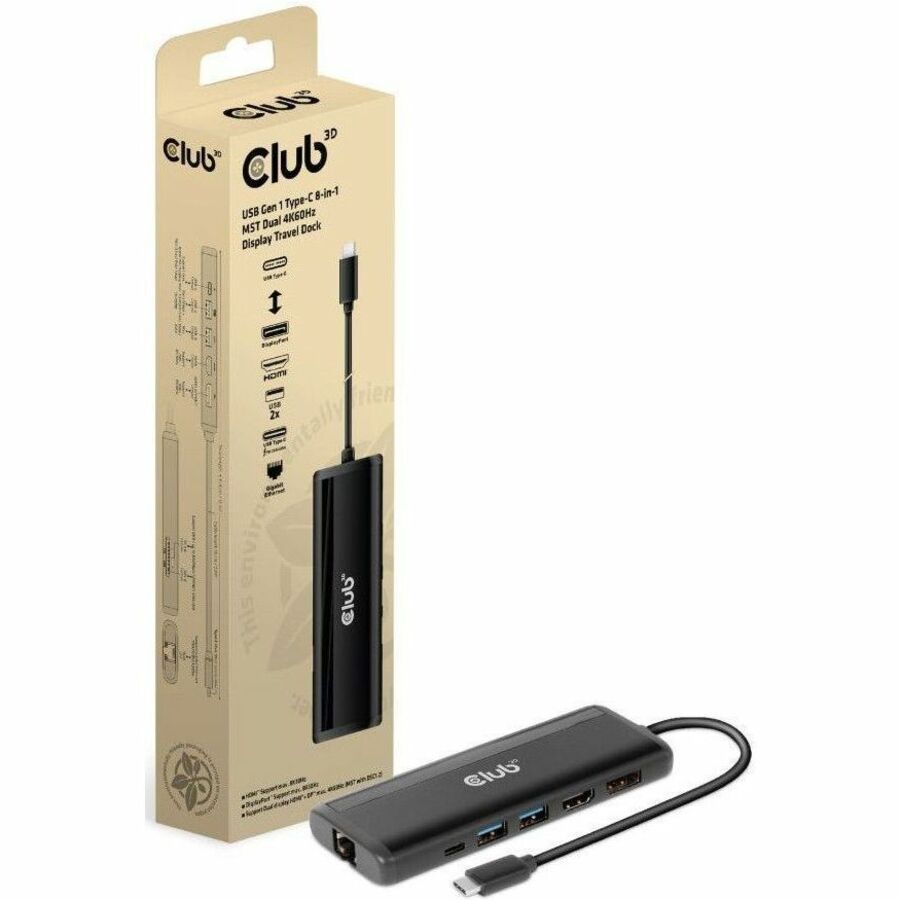

Club 3D USB Gen 1 Type-C 8-in-1 MST Dual 4K60Hz Display Travel Dock
for Headset, Desktop PC - Charging Capability - Memory Card Reader - SD, microSD - USB (Gen 1) Type C - 2 Displays Supported - 4K @ 60Hz, 8K @ 30Hz - 3840 x 2160, 7680 x 4320 - 4 x USB Ports - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - Wired - Gigabit Ethernet - Windows, macOS - 100W USB Power Delivery
About This Product
Overview
The Club 3D CSV-1597 USB Gen 1 Type-C 8-in-1 MST Dual 4k60Hz Display Travel Dock with HDMI™8K30Hz(HDR), DisplayPort™ 8K30Hz, 2x USB Gen1 Type-A, BC1.2, RJ45, SD/Micro SD card slots and USB Gen1 Type-C PD3.0 Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network, or connect to headset to enjoy fantastic music. It also provides PD3.0 charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP™1.4 Alt mode supported USB Gen1 Type-C hosts.
- Support DP™1.4 Alt mode max. 8K@30Hz(with DSC1.2)
- Support HDMI™ max. 8K@30Hz(with DSC1.2)
- Support Dual display HDMI™+ DP™ max.4K60Hz (MST with DSC1.2)
- Max 5Gbps data transmission per USB Gen 1 Type-A port
- Support max 7.5W(5V/1.5A) downstream charging, 2 USB Gen1 Type-A share max 2.5A(12.5Watt) output
- Support Gigabit Ethernet 10M/100M/1000M
- Support SD3.0 UHS-I up to 832Mbps/104MB/s data rate, allow 2 card slots to work simultaneously
- Support PD3.0 with max. 100W PD charging
Quick Specifications
- Packaged Quantity
- 1
- Product Type
- Docking Station
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Number of Displays Supported
- 2
- Supported Resolutions
- 3840 x 2160 7680 x 4320
- Screen Mode Supported
- 4K @ 60Hz 8K @ 30Hz
- Memory Card Reader
- Yes
