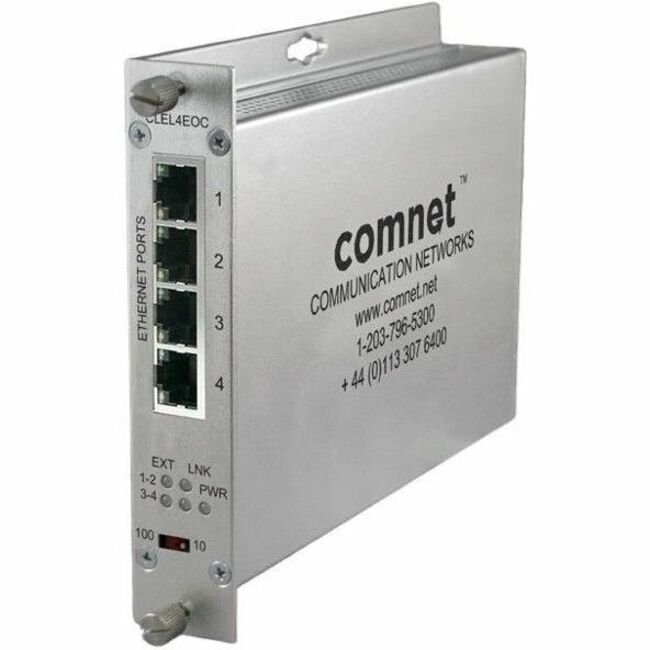

ComNet CopperLine Value Kit: Point-to-Multipoint Ethernet-over-Coax Extender
Manufacturer: ACRE
Mfr. Part: CLEK41EOC
4 x Network (RJ-45) - 1312.34 ft Extended Range
About This Product
Overview
The ComNet™ Value CLEK41EOC features four remote 10/100 Mbps singlechannel units and a single four-channel local unit in a pre-packaged kit. Perfect for applications that face density challenges. The four-channel units will fit into any ComNet product rack. The four individual small-sized remote units can be placed up to 1,200 feet (400 meters) from the four channel local unit. Power supplies included. A DIP Switch allows configurable selection of 10 Mbps or 100 Mbps speed these units are simple to install. This CopperLine® Value kit provides five units with power supplies.
- Transmits individual Ethernet data over Coaxial cable
- Extends Ethernet up to 1,200 feet (400 m) over Coaxial cable
- Temperature operation from 0°C to +50°C
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- User-selectable data rate for maximum bandwidth and transmission distance utilization
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed and manufactured in the USA
Quick Specifications
- Product Line
- CopperLine
- Product Type
- Network Extender
- Maximum Extended Range
- 1312.34 ft
- Maximum Data Transfer Rate
- 12.50 MB/s
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 4
- Country of Origin
- United States
- Environmentally Friendly
- Yes
