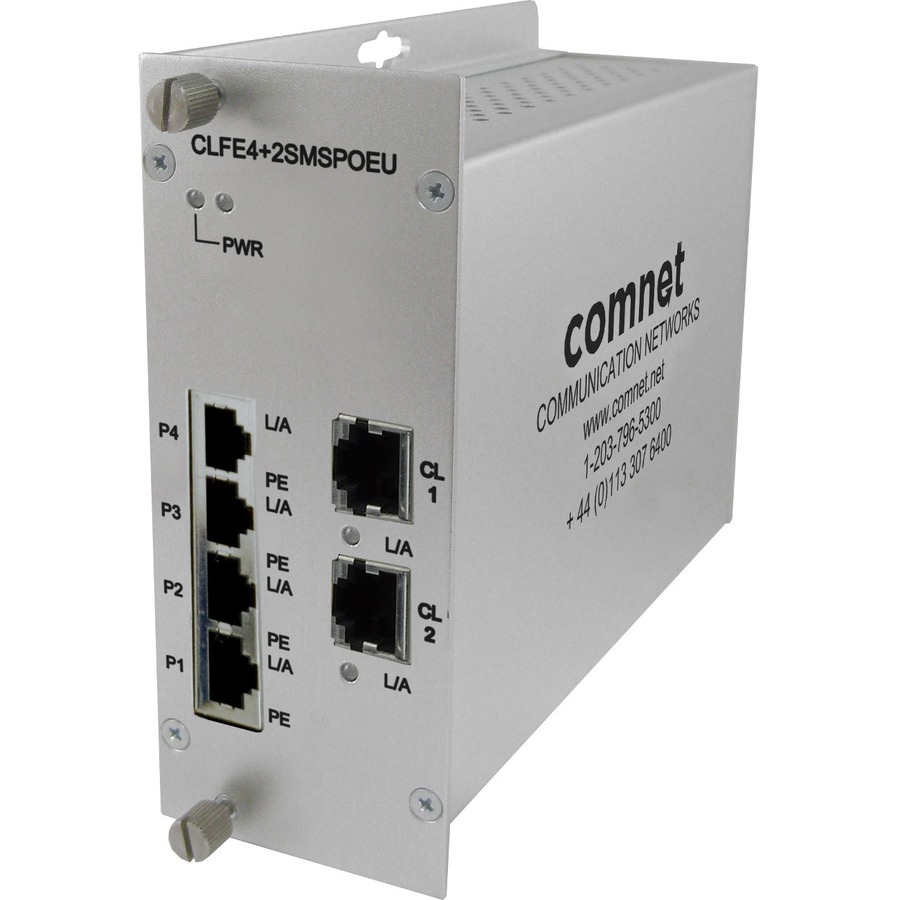

ComNet 10/100TX Drop/Insert/Repeat 4TX/2EX Self-Managed Switch with PoE+
6 Ports - Manageable - 2 Layer Supported - Twisted Pair, Coaxial - Wall Mountable, Surface Mount, DIN Rail Mountable, Rack-mountable, Standalone - Lifetime Limited Warranty
About This Product
Overview
The ComNet CLFE4+2SMS[POE](C,U) is a six-port Ethernet switch with add/ drop/repeat functionality and provides 4 copper ports operating at 10/100Mbps and is designed to combine four electrical ports along with the incoming Cat5, UTP or Coax CopperLine® extension port into a further CopperLine extension port that forwards this data to the next CopperLine network device. There is no programming required to use this product. The ComNet CLFE4+2SMS(C,U) comes pre-programmed, preventing network video flooding with DIP switch selection of the first CopperLine port as an uplink or as an unmanaged switch. Ports 1-4 of the CLFE4+2SMSPOE(C,U) can supply up to thirty (30) watts of Power over Ethernet (PoE) and incorporate PoE+ features based on the IEEE 802.3at standard.
Features
- Full 10/100 Mbps Bandwidth
- 10/100 Mbps Ethernet 4 × 10/100Mbps RJ-45 Ports 2 × 10/100Mbps UTP/Coax Extended Distance Ports
- IEEE 802.3 compliant
- Extended distance ports are switch-selectable for 10 Mbps or 100 Mbps data rate, 1 pair or 4 pair in UTP mode
- IEEE802.3at PoE+ 30W (PoE models only)
- Supports Multicast, Unicast
- Extended distance over UTP or Coaxial Cable
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- ComFit standard form factor is interchangeable between stand-alone or rack mount use.
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Standard ComFit models are hot-swappable.
Applications
- 10/100 Mbps Ethernet
- High Speed Computer Links
- Drop/Insert/Repeat Ethernet data over extended distances
- Factory Automation with UTP
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Management capability provides control over setup and configuration of your network
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Quick Specifications
- Product Series
- CLFE4+2SMS[POE](C,U)
- Product Type
- Ethernet Switch
- Total Number of Network Ports
- 6
- Port/Expansion Slot Details
- 4 x Fast Ethernet Network 2 x Fast Ethernet Network
- Media Type Supported
- Twisted Pair Coaxial
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 10/100Base-TX 100Base-EX
- Layer Supported
- 2
