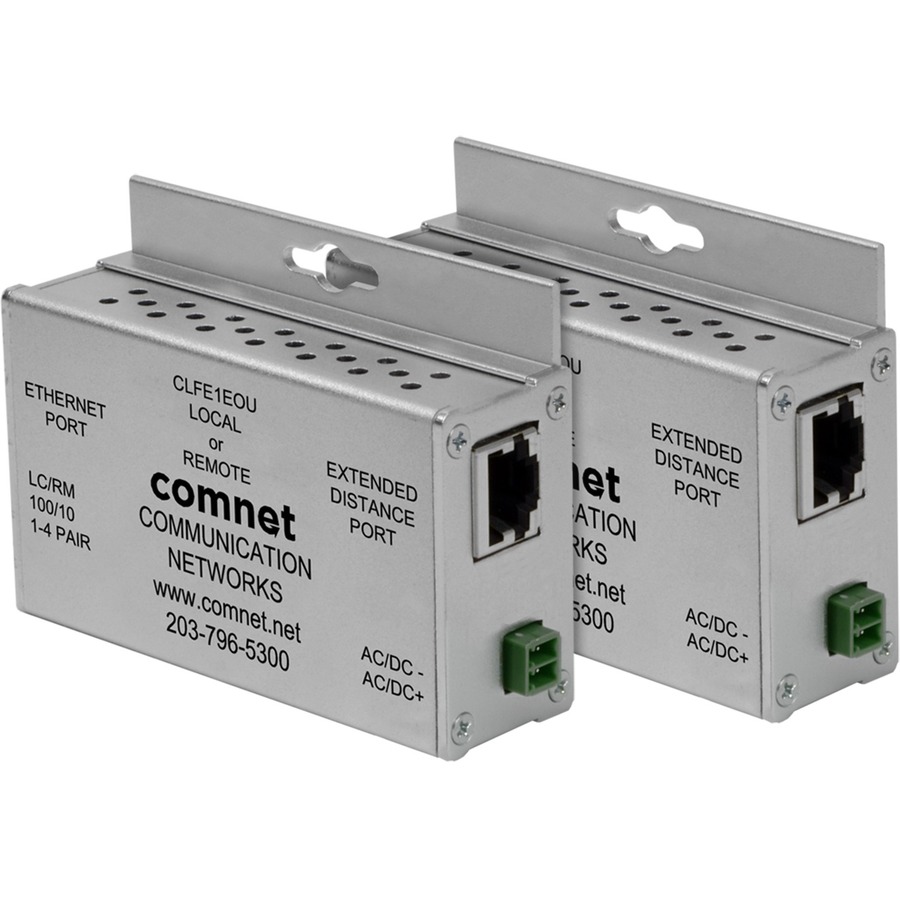

ComNet Ethernet-over-Copper Extender With Pass-Through PoE
Manufacturer: ACRE
Mfr. Part: CLKFE1EOU
Network (RJ-45) - 5000 ft Extended Range
About This Product
Overview
The ComNet CopperLine® Ethernet over copper line kit supports one channel of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units included in the kit may be powered by a PoE switch or the included power supply. These units extend a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- User-selectable data rate for maximum bandwidth and transmission distance utilization.
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed and manufactured in the USA
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
Quick Specifications
- Product Line
- CopperLine
- Product Series
- CLKFE
- Product Model
- CLKFE1EOU
- Packaged Quantity
- 2
- Product Type
- Network Extender
- Maximum Extended Range
- 5000 ft
- Maximum Data Transfer Rate
- 12.50 MB/s
- Network (RJ-45)
- Yes
