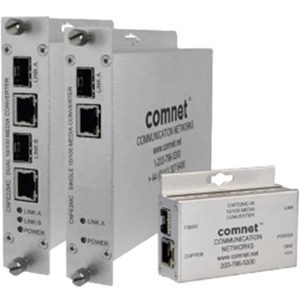

ComNet CNFE2MC2C[/M] Transceiver/Media Converter
1 x Network (RJ-45) - Single-mode, Multi-mode - Fast Ethernet - 10/100Base-TX, 100Base-FX - SFP - Power Supply - Rack-mountable, DIN Rail Mountable
![ComNet CNFE2MC2C[/M] Transceiver/Media Converter](https://content.etilize.com/Large/1029147441.jpg)
About This Product
Overview
The ComNet™ CNFE2MC2C[/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data and two bi-directional contact closures over multimode or single mode optical fiber using sold-separately SFP* modules to select distance and connector type. The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. These media converters are environmentally hardened to operate in extreme temperatures. The CNFE2MC2C/M small package size is ideal for locations where space is at a premium. Packaged in the exclusive ComNet ComFit housing, the full size CNFE2MC2C may be rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
- Optical port supports 100 Mbps full duplex data
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- IEEE 802.3 compliant
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
Quick Specifications
- Product Series
- CNFE2MC2C[/M]
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Fiber Mode Supported
- Single-mode Multi-mode
- Expansion Slot Type
- SFP
