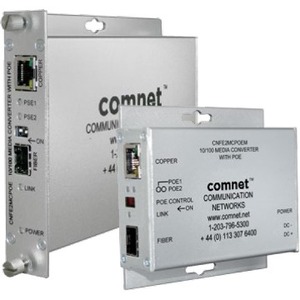

ComNet Mini 10/100 Mbps Ethernet Media Conveter with PoE
Network (RJ-45) - 1x PoE (RJ-45) Ports - Fast Ethernet - 10/100Base-TX, 100Base-FX - 80 km - 1 x Expansion Slots - SFP - 1 x SFP Slots - Power Supply
About This Product
Overview
The ComNet CNFE2MCPOE[/M] Ethernet media converter is designed to transmit and receive 10/100 Mbps data over optical fiber through user selectable SFP modules. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. The CNFE2MCPOE[/M] transmits and receives a single channel of Ethernet data. It also supports IEEE 802.3at as Power Sourcing Equipment (PSE) with up to 30 Watts @ 48 VDC (not supported when installed in ComNet Rack). The electrical interface will Auto-Negotiate to a 10 Mbps, or 100 Mbps Ethernet rate without any adjustments. The optical interface operates at a 100 Mbps Ethernet rate. It is environmentally hardened to operate in extreme conditions.
- Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
- PoE Compatible: IEEE 802.3af and 802.3at compliant for PoE and PoE Plus
- Optical port supports 100 Mbps full duplex data
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- IEEE 802.3 compliant
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- Uses customer-installed ComNet SFPs for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances (SFPs ordered separately).
- Electrical port supports both auto-negotiation of data speeds and automatic MDI/MDI-X crossover for full and half-duplex operation.
Quick Specifications
- Product Series
- CNFE2MCPOE[2,/M]
- Product Type
- Transceiver/Media Converter
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of PoE (RJ-45) Ports
- 1
- Media Type Supported
- Twisted Pair Optical Fiber
- Maximum Distance Supported
- 80 km
- Total Number of Expansion Slots
- 1
